RayBio® Human BATF3 ELISA Kit for Serum, Plasma, and Cell Culture Supernatants.

Lead time: Typically ships within 1-2 business days. No Friday shipments.


Assay Format

Detection Range:
50 pg/ml -10 ng/ml
Recommended Dilution (serum & plasma):
2 fold
50 pg/ml
This ELISA kit shows no cross-reactivity with the following cytokines tested: human ADAMTSL-1/Punctin-1, AMSH/STAMBP, Annexin V, Bora, Cadherin-17, Caveolin-2, CD2, CD200 R1, CHST3, COMT, Cystatin SA, Dopamine beta-Hydroxylase, Desmin, Exostosin-like 3, Ficolin-1, FosB/GOS3, FRS2, GATA-5, GFAP, GLI-3, HepaCAM, ARNT/HIF-1 beta, 17 betaHSD1/HSD17B1, IDO, Kallikrein 1, Kell, MDL-1/CLEC5A, NPDC-1, Numb, Olig2, p63/TP73L, Pax3, Semaphorin 4D, Sphingosine Kinase 1/SPHK1, TAZ/WWTR1, TC-PTP, Transglutaminase 3/TGM3, TPST2, TREML1/TLT-1.
Number of Targets Detected:
Species Detected:
  • Human
Compatible Sample Types:
  • Cell Culture Supernatants
  • Plasma
  • Serum
Design Principle:
  • Sandwich-based
Method of Detection:
  • Quantitative
Solid Support:
96-well Microplate

Product Specifications

1, 2, or 5 x 96-Well Strip Microplate Kit

Protein Information

Accession Number:
  • Q9NR55
Gene ID:
  • 55509
Gene Names:
  • BATF3
  • SNFT
Protein Name & Synonyms:
Basic leucine zipper transcriptional factor ATF-like 3 (B-ATF-3) (21 kDa small nuclear factor isolated from T-cells) (Jun dimerization protein p21SNFT)

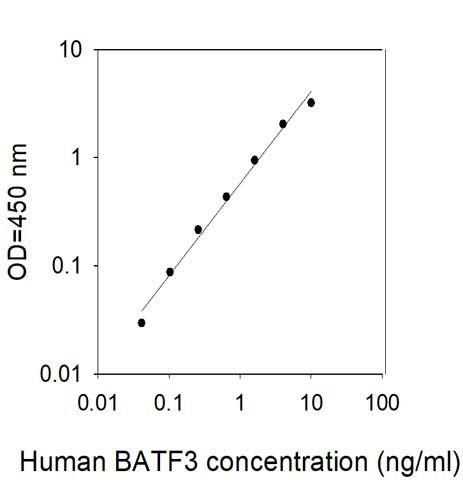

Standard Curves

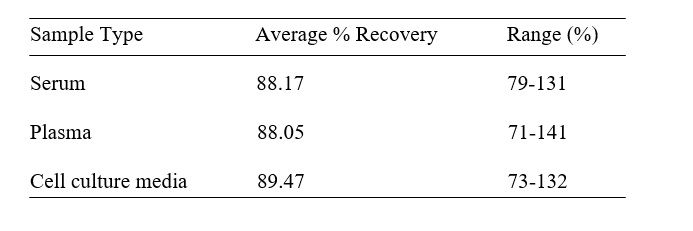

Spiking & Recovery Results

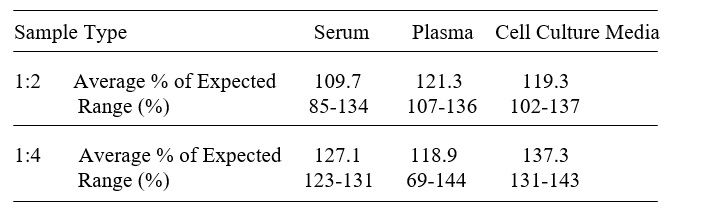

Linearity Results

Application Notes

Kit Components
  • Pre-Coated 96-well Strip Microplate
  • Wash Buffer
  • Stop Solution
  • Assay Diluent(s)
  • Lyophilized Standard
  • Biotinylated Detection Antibody
  • Streptavidin-Conjugated HRP
  • TMB One-Step Substrate
Other Materials Required
  • Distilled or deionized water
  • Precision pipettes to deliver 2 µl to 1 µl volumes
  • Adjustable 1-25 µl pipettes for reagent preparation
  • 100 µl and 1 liter graduated cylinders
  • Tubes to prepare standard and sample dilutions
  • Absorbent paper
  • Microplate reader capable of measuring absorbance at 450nm
  • Log-log graph paper or computer and software for ELISA data analysis
Protocol Outline
  1. Prepare all reagents, samples and standards as instructed in the manual.
  2. Add 100 µl of standard or sample to each well.
  3. Incubate 2.5 h at RT or O/N at 4°C.
  4. Add 100 µl of prepared biotin antibody to each well.
  5. Incubate 1 h at RT.
  6. Add 100 µl of prepared Streptavidin solution to each well.
  7. Incubate 45 min at RT.
  8. Add 100 µl of TMB One-Step Substrate Reagent to each well.
  9. Incubate 30 min at RT.
  10. Add 50 µl of Stop Solution to each well.
  11. Read at 450 nm immediately.


The entire kit may be stored at -20°C for up to 1 year from the date of shipment. Avoid repeated freeze-thaw cycles. The kit may be stored at 4°C for up to 6 months. For extended storage, it is recommended to store at -80°C.
The Human BATF3 ELISA is straightforward and gives accurate results with lysates from cancer cell lines.

Write A Review
U.S. Non-U.S.


This product is furnished for LABORATORY RESEARCH USE ONLY.
Not for diagnostic or therapeutic use.
