Multiplex ELISA array detects 40 Human Inflammatory Factors. Suitable for all liquid sample types.
Product Description
Specifications
| Size | 8 Sample Kit, 22 Sample Kit, 50 Sample Kit |
|---|---|
| Number of Targets Detected | 40 |
| Research Area | Inflammation |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Other Body Fluids, Cell Lysates |
| Quantitative/Semi-Quantitative | Quantitative |
| Solid Support | Glass Slide |
| Design Principle | Sandwich-based |
| Method Of Detection | Fluorescence Laser Scanner |
| More Information | Suggested Application Multiplexed Protein Detection; Biomarker Screening; Identifying Key Factors; Confirming Biological Process; Biomarker Validation; Validation of Antibody Array Results; Quantitative Protein Detection; Establishing Normal Range |
| Storage / Stability |
|
| Species | Human |
Amazon Gift Cards!
$5 Amazon gift card in every kits purchased.

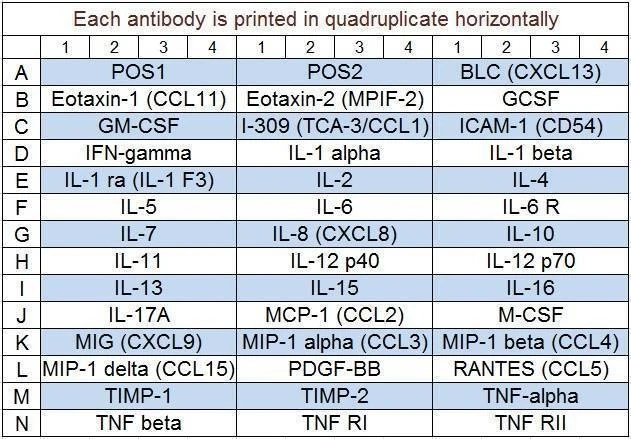

| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
BLC (CXCL13)
| Eotaxin-1 (CCL11)
| Eotaxin-2 (MPIF-2/CCL24)
| GCSF
| GM-CSF
|
I-309 (TCA-3/CCL1)
| ICAM-1 (CD54)
| IFN-gamma
| IL-1 alpha (IL-1 F1)
| IL-1 beta (IL-1 F2)
|
IL-1 ra (IL-1 F3)
| IL-2
| IL-4
| IL-5
| IL-6
|
IL-6 R
| IL-7
| IL-8 (CXCL8)
| IL-10
| IL-11
|
IL-12 p40
| IL-12 p70
| IL-13
| IL-15
| IL-16
|
IL-17A
| MCP-1 (CCL2)
| M-CSF
| MIG (CXCL9)
| MIP-1 alpha (CCL3)
|
MIP-1 beta (CCL4)
| MIP-1 delta (CCL15)
| PDGF-BB
| RANTES (CCL5)
| TIMP-1
|
TIMP-2
| TNF alpha
| TNF beta (TNFSF1B)
| TNF RI (TNFRSF1A)
| TNF RII (TNFRSF1B)
|
Application Notes
Suggested Application
Multiplexed Protein Detection; Biomarker Screening; Identifying Key Factors; Confirming Biological Process; Biomarker Validation; Validation of Antibody Array Results; Quantitative Protein Detection; Establishing Normal Range
Kit Components
- Human Inflammation Array Q3 Slide(s)
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Lyophilized Standard Mix
- Biotinylated Detection Antibody Cocktail
- Streptavidin-Conjugated Fluor
- Slide Washer/Dryer
- Adhesive Plastic Strips
- Manual
Other Materials Required
- Distilled or deionized water
- Small plastic boxes or containers
- Pipettors, pipette tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Aluminum foil
- Gene microarray scanner or similar laser fluorescence scanner
View Compatible Laser Scanners
Don't have a compatible scanner? RayBiotech now offers FREE scanning service for all RayBio glass slide antibody arrays! Learn More
Protocol Outline
- Dry the glass slide
- Prepare Standards
- Block array surface
- Incubate with Samples and Standards
- Incubate with Biotinylated Detection Antibody Cocktail
- Incubate with Streptavidin-Conjugated Fluor
- Disassemble the glass slide
- Scan with a gene microarray laser scanner
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array slide(s), standard mix, detection antibody cocktail, and Cy3-Conjugated Streptavidin at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
Velez G., Bassuk A., Colgan D., et al. Therapeutic drug repositioning using personalized proteomics of liquid biopsies. JCI Insight. 2017 Dec 21;2(24). pii: 97818. doi: 10.1172/jci.insight.97818.
Species:
Human
Sample Type:
Vitreous Fluid (Vitreous sample from retinopathy patients)
Liao Y., Ivanova L., Zhu H., et al. Cord Blood-Derived Stem Cells Suppress Fibrosis and May Prevent Malignant Progression in Recessive Dystrophic Epidermolysis Bullosa. Stem Cells. 2018 Sep 24. doi: 10.1002/stem.2907.
Species:
Human
Sample Type:
Conditioned Media (Umbilical cord stem cells)
Velez G., Roybal C., Colgan D., et al. Precision Medicine: Personalized Proteomics for the Diagnosis and Treatment of Idiopathic Inflammatory Disease. JAMA Ophthalmol. 2016 Apr;134(4):444-8. doi: 10.1001/jamaophthalmol.2015.5934.
Species:
Human
Sample Type:
Vitreous Fluid (Human Vitreous Fluid samples)

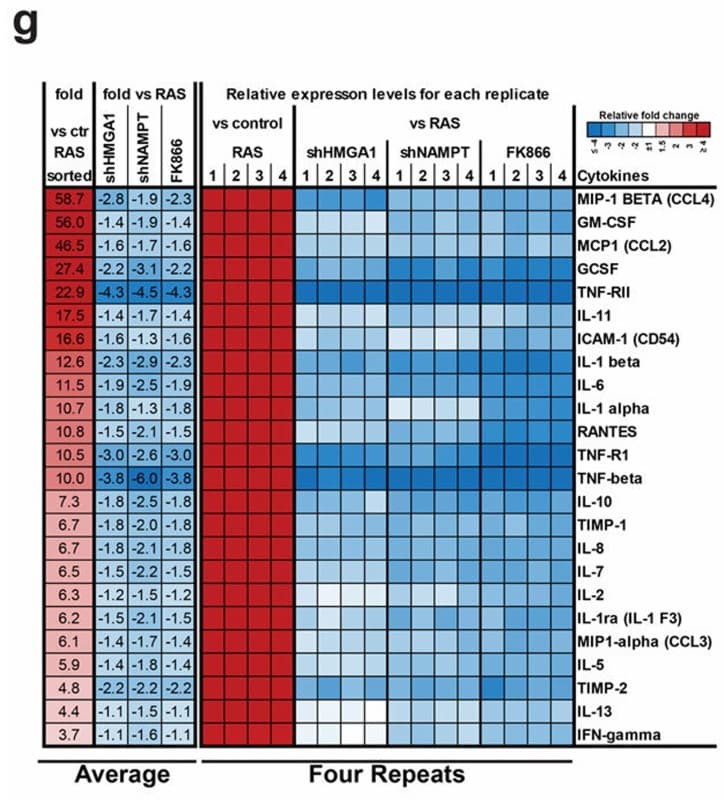

Nacarelli T., Lau L., Fukumoto T., et al. NAD+ metabolism governs the proinflammatory senescence-associated secretome. Nat Cell Biol . 2019 Mar;21(3):397-407. doi: 10.1038/s41556-019-0287-4. Epub 2019 Feb 18.
Species:
Human
Sample Type:
Conditioned Media (IMR90 Fibroblasta and cocultures)

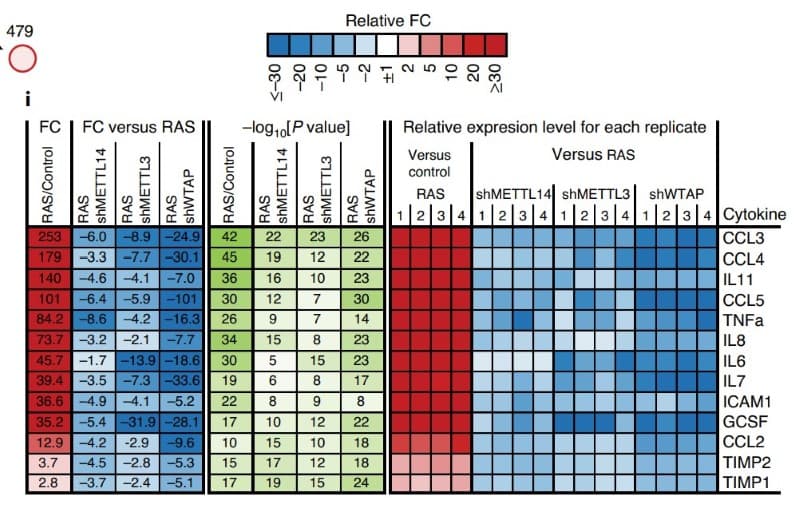

Liu P., Li F., Lin J., et al. m6A-independent genome-wide METTL3 and METTL14 redistribution drives the senescence-associated secretory phenotype. Nature Cell Biology volume 23, pages 355-365 (2021)
Species:
Human
Sample Type:
Conditioned Media (IMR90 cells Oncology in vitro culture with RAS induced senescence)
Izrael M., Slutsky SG., Admoni T., et al. Safety and efficacy of human embryonic stem cell-derived astrocytes following intrathecal transplantation in SOD1G93A and NSG animal models. Stem Cell Res Ther. 2018 Jun 6;9(1):152. doi: 10.1186/s13287-018-0890-5.
Species:
Human
Sample Type:
Conditioned Media (Embryonic stem cell derived astrocytes in immunodeficient mice)
Reategui E., Fatemeh J., Khankhel A., et al. Microscale arrays for the profiling of start and stop signals coordinating human-neutrophil swarming. Nature Biomedical Engineering 1, Article number: 0094 (2017) doi:10.1038/s41551-017-0094
Species:
Human
Sample Type:
Conditioned Media (Neutrophil swarming experiments)
Yang B., Deng Q., Zhang W., et al. Exposure to Polycyclic Aromatic Hydrocarbons, Plasma Cytokines, and Heart Rate Variability. Sci Rep. 2016 Jan 13;6:19272. doi: 10.1038/srep19272.
Species:
Human
Sample Type:
Plasma (Polycyclic aromatic hydrocarbon exposed patients)
Napolioni, Valerio, et al. "Plasma cytokine profiling in sibling pairs discordant for autism spectrum disorder." Journal of neuroinflammation 10.1 (2013): 813.
Species:
Human
Sample Type:
Plasma (autism )
Leung GP., Feng T., Sigoillot FD., et al. Hyperactivation of MAPK Signaling Is Deleterious to RAS/RAF-mutant Melanoma. Mol Cancer Res. 2018 Sep 10. doi: 10.1158/1541-7786.MCR-18-0327
Species:
Human
Sample Type:
Conditioned Media (A375 ERK2 treated cells with or without ddoxycycline)
