Detects 55 phosphorylated human proteins in 5 signaling pathways: MAPK, AKT, JAK/STAT, NFκB, and TGFβ. Suitable for all liquid sample types but intended for use with cell and tissue lysates.
Product Description
Specifications
| Size | 2 Sample Kit, 4 Sample Kit, 8 Sample Kit |
|---|---|
| Number of Targets Detected | 55 |
| Research Area | Post-Translational Modifications, Phosphorylation, Akt Signaling, JAK/STAT Signaling, MAPK Signaling, TGF-beta Signaling, NFkB Signaling |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Cell Lysates |
| Quantitative/Semi-Quantitative | Semi-Quantitative |
| Solid Support | Membrane |
| Design Principle | Sandwich-based |
| Method Of Detection | Chemiluminescence |
| Species | Human |
Risk-Free Guarantee
We offer a 100% guarantee on all ELISA Kits or C-Series Membrane Array.
Learn More
Amazon Gift Cards!
$5 Amazon gift card in every kits purchased.
| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
| 4E-BP1 (P-Thr36)
| AKT (P-Ser473)
| ATF2 (P-Thr69/71)
| ATM (P-Ser1981)
| |
| BAD (P-Ser112)
| C-Fos (P-Thr232)
| CREB (P-Ser133)
| EGFR (P-Ser1070)
| |
| ERK1/2 (P-Thr202/P-Tyr204/P-Tyr185/P-Tyr187)
| GSK-3 alpha (P-Ser21)
| GSK-3 beta (P-Ser9)
| HDAC2 (P-Ser394)
| |
| HDAC4 (P-Ser632)
| HSP27 (P-Ser82)
| IKBa (P-Ser32)
| JAK1 (P-Tyr1022)
| JAK2 (P-Tyr1007/1008)
|
| JNK (P-Thr183)
| MEK (P-Ser217/221)
| MKK3 (P-Ser189)
| MKK6 (P-Ser207) (MEK6)
| MSK1 (P-Ser376)
|
| MSK2 (P-Ser360)
| mTOR (P-Ser2448)
| NF-kB (P-Ser536)
| p27 (P-Thr198)
| p38 (P-Thr180/Tyr182)
|
| P53 (P-Ser15)
| P70S6K (P-Thr421/Ser424)
| PDK1 (P-Ser241)
| PRAS40 (P-Thr246)
| PTEN (P-Ser380)
|
| Raf-1 (P-Ser301)
| RPS6 (P-Ser235/236)
| RSK1 (P-Ser380)
| RSK2 (P-Ser386)
| SHP-1 (P-Ser591)
|
| SHP2 (P-Tyr542)
| SMAD1 (P-Ser463/465)
| SMAD2 (P-Ser245/250/255)
| SMAD4 (P-Thr277)
| SMAD5 (P-Ser463/465)
|
| Src (P-Tyr419)
| STAT1 (P-Ser727)
| STAT2 (P-Tyr689)
| STAT3 (P-Tyr705)
| STAT5 (P-Tyr694)
|
| STAT6 (P-Tyr641)
| TAK1 (P-Ser412)
| TBK1 (P-Ser172)
| TYK2 (P-Tyr1054)
| ZAP70 (P-Tyr292)
|
Application Notes
Suggested Application
Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process

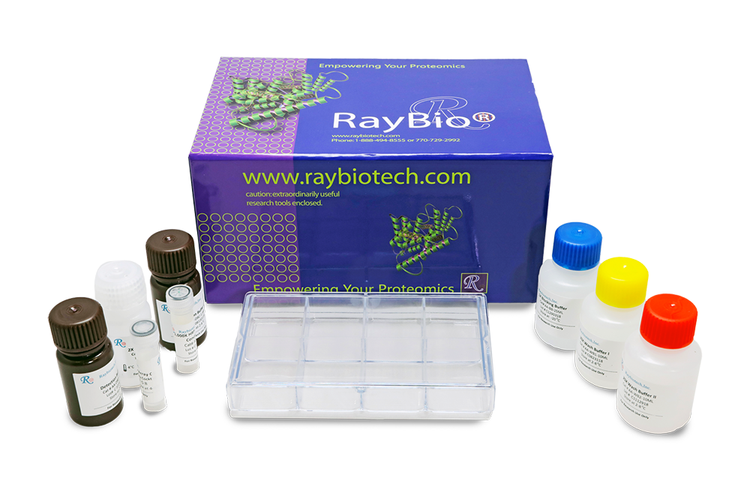

Kit Components
- Human Phosphorylation Pathway Profiling Array C55 Membranes
- Blocking Buffer
- Detection Antibody Cocktail
- 500X HRP-Anti-Rabbit IgG Concentrate
- 20X Wash Buffer I Concentrate
- 20X Wash Buffer II Concentrate
- 2X Cell Lysis Buffer Concentrate
- Detection Buffer C
- Detection Buffer D
- 8-Well Incubation Tray w/ Lid
- Protease Inhibitor Cocktail
- 100x Phosphatase Inhibitor Cocktail I
- Phosphatase Inhibitor Cocktail II
- Plastic Sheets
- Array Map Template
- Manual
Other Materials Required
- Pipettors, pipet tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Tissue Paper, blotting paper or chromatography paper
- Adhesive tape or Saran Wrap
- Distilled or de-ionized water
- A chemiluminescent blot documentation system (such as UVP's ChemiDoc-It® or EpiChem II Benchtop Darkroom or GE's ImageQuant™ LAS 4000 or Amersham Imagers 600 and 680), X-ray Film and a suitable film processor, or another chemiluminescent detection system.
Protocol Outline
- Block membranes
- Incubate with Sample
- Incubate with Detection Antibody Cocktail
- Incubate with HRP-Conjugated anti-IgG
- Incubate with Detection Buffers
- Image with chemiluminescent imaging system
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array membranes and 1X Blocking Buffer at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
Zhang, Dan, et al. "MALAT1 is involved in the pathophysiological process of PCOS by modulating TGF? signaling in granulosa cells." Molecular and cellular endocrinology 499 (2020): 110589.
Species:
Human
Sample Type:
Cell Lysate (PCOS )
Zhang D, Tang HY, Tan L, Zhao DM. MALAT1 is involved in the pathophysiological process of PCOS by modulating TGF? signaling in granulosa cells. Mol Cell Endocrinol. 2020 Jan 1;499:110589. doi: 10.1016/j.mce.2019.110589. Epub 2019 Sep 23. PMID: 31557499.
Species:
Human
Sample Type:
Cell Lysate
- Great productThis kit works pretty well for my samples. I used 700 ug of my samples (cell lysates) and performed exactly according to the instructional protocol and I got a very strong signal. The only reason that I didn't give it 5 stars was we had to purchase their software to analyze the results. As we already spent nearly $1000, we should be able to use the software for free, at least one time free.
from Kalya Pharma,
on
- Great productIt was easy to test multiple phosphorylation targets with limited sample quantity and workflow was really easy and uncomplicated. I used primary human endothelium cells with 100 ug of protein for each array and signals were good with 10-sec exposure.
from University of Wisconsin-Madison,
on
- Irwineasy to use, with clear results at the end. I was using human fibroblasts to investigate the affect of Crohn's disease serum on downstream pathways, and worked well with less than recommended protein concentration due to low concentration from the samples
from University of Wisconsin-Madison,
on
- Great system, easy to use, would use againThis kit worked really well. The kit came with everything you would need to run the experiment. I used the minimum recommended amount of protein and it worked very well. I did have a couple issues, but that wouldn't stop me from ordering it again. First, I tried marking the membranes at the their recommendation, but the ink I used bled onto a few of the protein dots so just be aware that it may happen. Also, the analysis software was a bit of pain. For each pathway, there was a specific excel file (so 5 total) and some were updated and some were not. It would have been easier to have everything in one file that also didn't have several tabs for the analysis, or at least a much more organized file with clear description of each step. I ended up doing the analysis on my own after struggling for a bit. But overall, very happy with my purchase.
from University of Wisconsin-Madison,
on
