The Cytokine Array C5 is a membrane-based antibody array for screening and comparing expression levels of 80 human cytokines in any liquid sample type.
Product Description
Specifications
| Size | 2 Sample Kit, 4 Sample Kit, 8 Sample Kit |
|---|---|
| Number of Targets Detected | 80 |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Cell Lysates |
| Quantitative/Semi-Quantitative | Semi-Quantitative |
| Solid Support | Membrane |
| Design Principle | Sandwich-based |
| Method Of Detection | Chemiluminescence |
| Species | Human |
Risk-Free Guarantee
We offer a 100% guarantee on all ELISA Kits or C-Series Membrane Array.
Learn More
Amazon Gift Cards!
$5 Amazon gift card in every kits purchased.

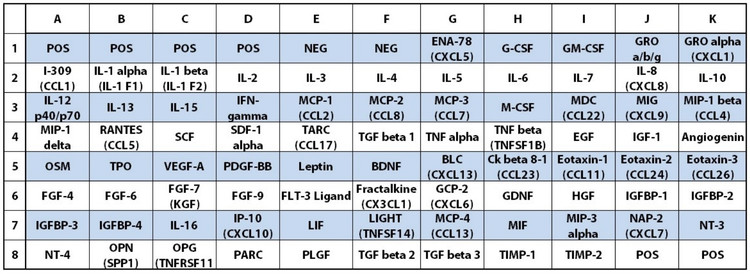

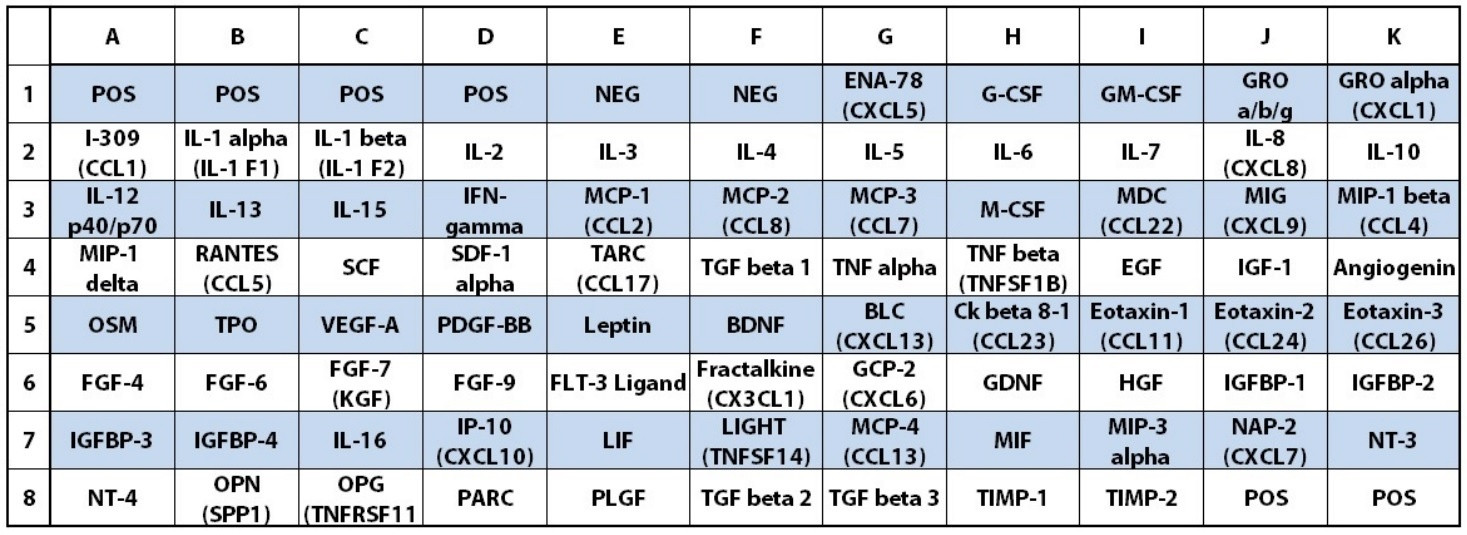

| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
| Angiogenin
| BDNF
| BLC (CXCL13)
| CK beta 8-1 (CCL23)
| EGF
|
| ENA-78 (CXCL5)
| Eotaxin-1 (CCL11)
| Eotaxin-2 (MPIF-2/CCL24)
| Eotaxin-3 (CCL26)
| FGF-4
|
| FGF-6
| FGF-7 (KGF)
| FGF-9
| Flt-3 Ligand
| Fractalkine (CX3CL1)
|
| GCP-2 (CXCL6)
| GCSF
| GDNF
| GM-CSF
| GRO alpha (CXCL1)
|
| GRO alpha/beta/gamma
| HGF
| I-309 (TCA-3/CCL1)
| IFN-gamma
| IGF-1
|
| IGFBP-1
| IGFBP-2
| IGFBP-3
| IGFBP-4
| IL-1 alpha (IL-1 F1)
|
| IL-1 beta (IL-1 F2)
| IL-2
| IL-3
| IL-4
| IL-5
|
| IL-6
| IL-7
| IL-8 (CXCL8)
| IL-10
| IL-12 p40/p70
|
| IL-13
| IL-15
| IL-16
| IP-10 (CXCL10)
| Leptin
|
| LIF
| LIGHT (TNFSF14)
| MCP-1 (CCL2)
| MCP-2 (CCL8)
| MCP-3 (MARC/CCL7)
|
| MCP-4 (CCL13)
| M-CSF
| MDC (CCL22)
| MIF
| MIG (CXCL9)
|
| MIP-1 beta (CCL4)
| MIP-1 delta (CCL15)
| MIP-3 alpha (CCL20)
| NAP-2 (PPBP/CXCL7)
| NT-3
|
| NT-4
| Oncostatin M
| Osteopontin (SPP1)
| Osteoprotegerin (TNFRSF11B)
| PARC (CCL18)
|
| PDGF-BB
| PLGF
| RANTES (CCL5)
| SCF
| SDF-1 alpha (CXCL12 alpha)
|
| TARC (CCL17)
| TGF beta 1
| TGF beta 2
| TGF beta 3
| Thrombopoietin (TPO)
|
| TIMP-1
| TIMP-2
| TNF alpha
| TNF beta (TNFSF1B)
| VEGF-A
|
Species Detected
Human
Application Notes
Suggested Application
Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process
Kit Components
- Human Cytokine Antibody Array C5 Membranes
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Biotinylated Detection Antibody Cocktail
- Streptavidin-Conjugated HRP
- Detection Buffer C
- Detection Buffer D
- Lysis Buffer
- 8-Well Incubation Tray
- Plastic Sheets
- Array Templates
- Manual
Other Materials Required
- Pipettors, pipet tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Tissue Paper, blotting paper or chromatography paper
- Adhesive tape or Saran Wrap
- Distilled or de-ionized water
- A chemiluminescent blot documentation system (such as UVP's ChemiDoc-It® or EpiChem II Benchtop Darkroom or GE's ImageQuant™ LAS 4000 or Amersham Imagers 600 and 680), X-ray Film and a suitable film processor, or another chemiluminescent detection system.
Protocol Outline
- Block membranes
- Incubate with Sample
- Incubate with Biotinylated Detection Antibody Cocktail
- Incubate with HRP-Conjugated Streptavidin
- Incubate with Detection Buffers
- Image with chemiluminescent imaging system
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array membranes and 1X Blocking Buffer at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
Celis J E, Gromov P, Cabezo T, Moreira JM Ambartsumian N, et al.Proteomic Characterization of the Interstitial Fluid Perfusing the Breast Tumor Microenvironment. Mol Cell Proteomics. 2004;3:327-344.
Species:
Human
Sample Type:
Interstitial Fluid (Tumor interstitial fluid)
Sze S, Kleijn D, Lai R, Tan E, Zhao H,et al.Elucidating the Secretion Proteome of Human Embryonic Stem Cell-derived Mesenchymal Stem Cells.Mol Cell Proteomics. 2007; 6: 1680-1690
Species:
Human
Sample Type:
Conditioned Media (conditioned or non-conditioned medium)
Perotti V., Baldassari P., Bersani I., et al. NFATc2 is a potential therapeutic target in human melanoma. J Invest Dermatol. 2012 Nov;132(11):2652-60. doi: 10.1038/jid.2012.179
Species:
Human
Sample Type:
Conditioned Media (Melanoma Cell lines)
Canady, Johanna, et al. "Increased KGF expression promotes fibroblast activation in a double paracrine manner resulting in cutaneous fibrosis." Journal of Investigative Dermatology 133.3 (2013): 647-657.
Species:
Human
Sample Type:
Conditioned Media (keritinocytes stimulated with KGF)
Cherif H, Bisson DG, Mannarino M, Rabau O, Ouellet JA, Haglund L. Senotherapeutic drugs for human intervertebral disc degeneration and low back pain. Elife. 2020 Aug 21;9:e54693. doi: 10.7554/eLife.54693. PMID: 32821059; PMCID: PMC7442487.
Species:
Human
Sample Type:
Conditioned media (pellet cell culture)
Lietman C., Wu B., Lechner S., et al. Inhibition of Wnt/?-catenin signaling ameliorates osteoarthritis in a murine model of experimental osteoarthritis. JCI Insight. 2018 Feb 8;3(3). pii: 96308. doi: 10.1172/jci.insight.96308
Species:
Human
Sample Type:
Conditioned Media (Chondrocytes and synovial fluid from an osteoarthritis model)
Dominguez C., McCampbell K., David J., Palena C. Neutralization of IL-8 decreases tumor PMN-MDSCs and reduces mesenchymalization of claudin-low triple-negative breast cancer. JCI Insight. 2017 Nov 2;2(21). pii: 94296. doi: 10.1172/jci.insight.94296.
Species:
Human
Sample Type:
Conditioned Media (Breast cancer cell lines including MDB-MB-231 and MCF7 among others)
He T, Smith LA, Harrington S, Nath KA, Caplice NM, Katusic ZS. Transplantation of Circulating Endothelial Progenitor Cells Restores Endothelial Function of Denuded Rabbit Carotid Arteries. Stroke. 2004;35;2378-2384;
Species:
Rabbit
Sample Type:
Conditioned Media (endotheilial progentior cells (EPC) Cell-conditioned media)
Zhao D., Najbauer J., Annala AJ., et al. Human neural stem cell tropism to metastatic breast cancer. Stem Cells. 2012 Feb;30(2):314-25. doi: 10.1002/stem.784.
Species:
Human
Sample Type:
Conditioned Media (MDA-MB-231 breast cancer cells)
Huang L, Zhao A, Wong F, Ayala JM, et al. Leukotriene B4 Strongly Increases Monocyte Chemoattractant Protien-1 in Human Monocytes. Arterioscler Thromb Vasc Biol. 2004;24:1783-1788.
Species:
Human
Sample Type:
Conditioned Media (Monocytes)
