Human SIRP gamma / CD47 Ligand Binding Assay Kit

TheHuman SIRP gamma / CD47 Ligand Binding Assay Kit uses a rapid, simple, and sensitive method to characterize the binding affinity between SIRP gamma and CD47 in the presence of potential inhibitors within 4 hours.

$931.00

Human SIRP gamma / CD47 Ligand Binding Assay Kit

Product Description

Specifications

Size	1 Plate Kit, 2 Plate Kit, 5 Plate Kit
Estimated Lead Time	6-8 weeks
Species	Human
Compatible Sample Types	Plasma, Serum, Antibodies, Proteins, Small Molecules, Peptides
Accession Number	Q9P1W8 / Q08722
Gene Id	55423 / 961
Gene Symbols	SIRPG SIRPB2 / CD47 MER6
Protein Name / Synonyms	Signal-regulatory protein gamma (SIRP-gamma) (CD172 antigen-like family member B) (Signal-regulatory protein beta-2) (SIRP-b2) (SIRP-beta-2) (CD antigen CD172g) / Leukocyte surface antigen CD47 (Antigenic surface determinant protein OA3) (Integrin-associated protein) (IAP) (Protein MER6) (CD antigen CD47)
Quantitative/Semi-Quantitative	Semi-Quantitative
Solid Support	96-well Microplate
Method Of Detection	Colorimetric
Research Area	Receptor-Ligand Binding
Shipping Type	Blue ice
Storage	4°C

Kit Components

Pre-coated 96-well microplate
Wash Buffer
Assay Diluent
Ligand Protein
Detection Antibody
HRP Conjugated Anti-IgG
TMB One-Step Substrate Reagent
Stop Solution

Additional Materials Required

Microplate reader capable of measuring absorbance at 450 nm
Shaker
Pipettes capable of accurately delivering 2 µL to 1 mL volumes
Pipettes capable of delivering 1-25 mL volumes for reagent preparation
100 mL and 1 liter graduated cylinders
Distilled or deionized water
Tubes to prepare sample dilutions

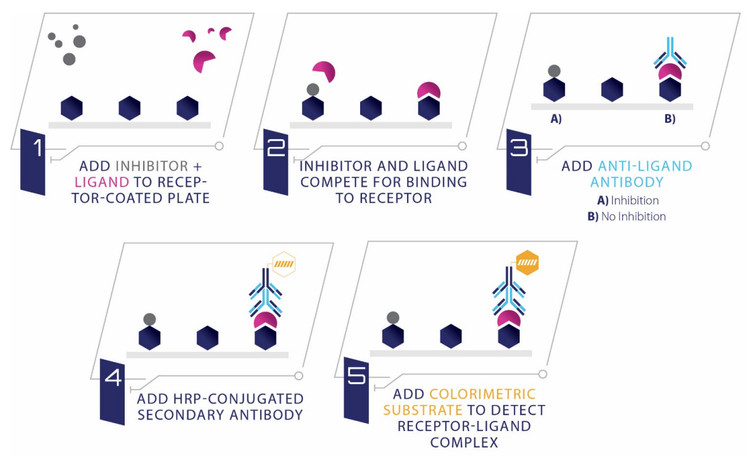

Assay Procedure Summary

Prepare all reagents and test reagent samples as instructed.
Add 100 µL test reagent samples to each well. Incubate 2.5 hours at room temperature or overnight at 4°C.
Add 100 µL the prepared Detection Antibody solution to each well. Incubate 1 hour.
Add 100 µL the prepared HRP Conjugated Anti-IgG solution to each well. Incubate 1 hour.
Add 100 µL TMB One-Step Substrate Reagent to each well. Incubate 30 minutes.
Add 50 µL Stop Solution directly to each well. Read at 450 nm immediately.

Storage/Stability

The kit may be stored at 4°C up to 1 month from the date of shipment. Shelf life can be extended up to 6 months by storing protein and antibodies, at -20°C immediately upon delivery. All other kit components should be stored at 4°C.

Have this product in hand?

Get your lot-specific datasheet at Ray's Docs. The datasheet linked below is our current version and may not match your lot.

Datasheet (BA-PRELIM.pdf)
