C-Series Human EGFR Phosphorylation Antibody Array 1 Kit. Detects 16 site specific and pan Human EGFRs. Suitable for all liquid sample types but intended for use with cell and tissue lysates.
Loading...
Loading...
Loading...
Loading...
Product Description
Specifications
| Size | 2 Sample Kit, 4 Sample Kit, 8 Sample Kit |
| Estimated Lead Time | 1-2 business days |
| Species | Human |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Cell Lysates |
| Quantitative/Semi-Quantitative | Semi-Quantitative |
| Number of Targets Detected | 16 |
| Recommended Applications | Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process |
| Solid Support | Membrane |
| Design Principle | Sandwich-based |
| Method Of Detection | Chemiluminescence |
| Research Area | Cancer, Post-Translational Modifications, Phosphorylation, HER/ErbB Signaling |
| Shipping Type | Blue ice |
| Storage | -20°C |
Product Features
- Easy to use
- No specialized equipment needed
- Compatible with nearly any liquid sample
- Proven technology (many publications)
- Highly sensitive (pg/ml)
- Sandwich ELISA specificity
- Higher density than ELISA, Western blot or bead-based multiplex
Target Names
| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
|
EGFR
(P-Tyr845)
|
EGFR
(P-Tyr992)
|
EGFR
(P-Tyr1045)
|
EGFR
(P-Tyr1068)
|
EGFR
(P-Tyr1086)
|
|
EGFR
(P-Tyr1148)
|
EGFR
(P-Tyr1173)
|
EGFR
(P-Ser1046/1047)
|
ErbB2
(P-Tyr877)
|
ErbB2
(P-Tyr1112)
|
|
ErbB2
(P-Tyr 1221/1222)
|
ErbB2
(P-Tyr1248)
|
ErbB2
(P-Thr686)
|
ErbB2
(P-Ser1113)
|
ErbB3
(P-Tyr1289)
|
|
ErbB4
(P-Tyr1284)
|
||||

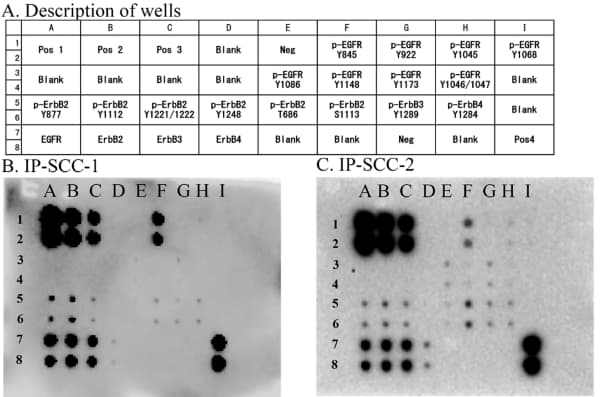

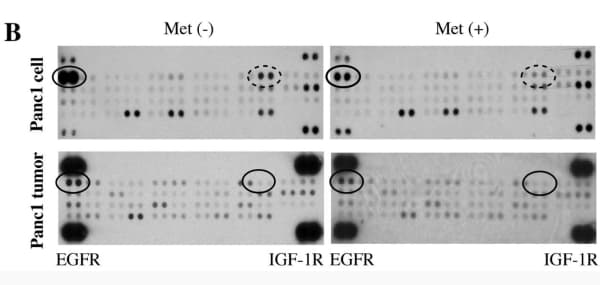

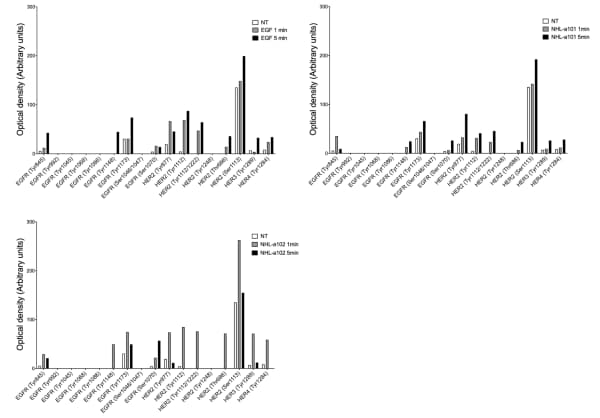

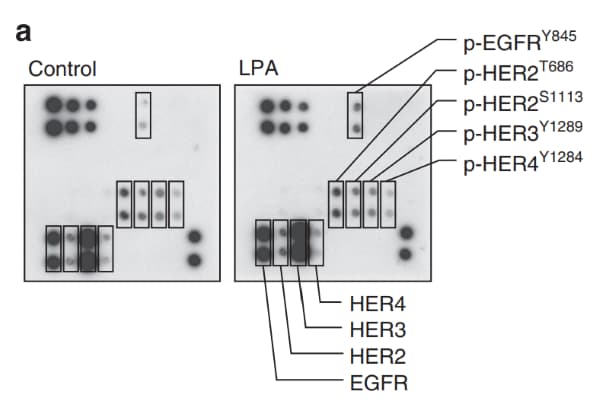

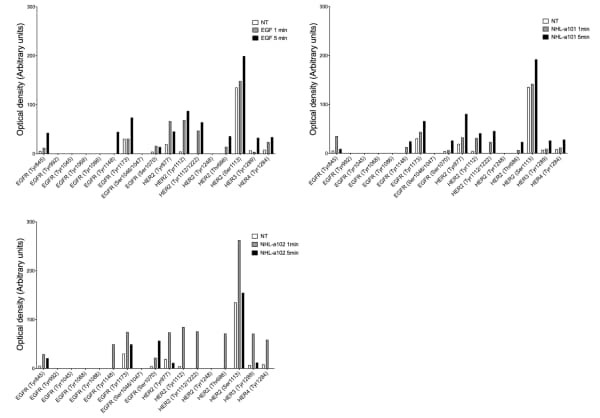

Typical Data
Kit Components
- Human EGFR Phosphorylation Antibody Array C1 Membranes
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Biotinylated Detection Antibody Cocktail
- Streptavidin-Conjugated HRP
- Detection Buffer C
- Detection Buffer D
- Lysis Buffer
- Protease Inhibitor Cocktail
- Phosphatase Inhibitor Cocktail Set I
- Phosphatase Inhibitor Cocktail II
- 8-Well Incubation Tray
- Plastic Sheets
- Array Templates
- Manual
Additional Materials Required
- Pipettors, pipet tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Tissue Paper, blotting paper or chromatography paper
- Adhesive tape or Saran Wrap
- Distilled or de-ionized water
- A chemiluminescent blot documentation system (such as UVP's ChemiDoc-It® or EpiChem II Benchtop Darkroom or GE's ImageQuant™ LAS 4000 or Amersham Imagers 600 and 680), X-ray Film and a suitable film processor, or another chemiluminescent detection system.
Assay Procedure Summary
- Block membranes
- Incubate with Sample
- Incubate with Biotinylated Detection Antibody Cocktail
- Incubate with HRP-Conjugated Streptavidin
- Incubate with Detection Buffers
- Image with chemiluminescent imaging system
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array membranes and 1X Blocking Buffer at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
