Detects 17 phosphorylated proteins in human or mouse samples. Suitable for all liquid sample types but intended for use with cell and tissue lysates.
Loading...
Loading...
Loading...
Loading...
Product Description
Specifications
| Size | 2 Sample Kit, 4 Sample Kit, 8 Sample Kit |
| Estimated Lead Time | 1-2 business days |
| Species | Human, Mouse |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Cell Lysates |
| Quantitative/Semi-Quantitative | Semi-Quantitative |
| Number of Targets Detected | 17 |
| Recommended Applications | Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process |
| Solid Support | Membrane |
| Design Principle | Sandwich-based |
| Method Of Detection | Chemiluminescence |
| Research Area | Post-Translational Modifications, Phosphorylation, HER/ErbB Signaling, IGF Signaling, JAK/STAT Signaling, MAPK Signaling, PI3K-AKT Signaling, NFkB Signaling, Wnt-beta-Catenin Signaling |
| Shipping Type | Blue ice |
| Storage | -20°C |
Product Features
- Easy to use
- No specialized equipment needed
- Compatible with nearly any liquid sample
- Proven technology (many publications)
- Highly sensitive (pg/ml)
- Sandwich ELISA specificity
- Higher density than ELISA, Western blot or bead-based multiplex
Target Names
| Scroll over each target protein for more information | ||||
|---|---|---|---|---|
|
Akt (P-Ser473)
(PKB (P-Ser473))
|
CREB (P-Ser133)
|
ERK1 (P-T202/Y204)/ERK2 (P-Y185/Y187)
|
GSK3a (P-Ser21)
|
GSK3b (P-Ser9)
|
|
HSP27 (P-Ser82)
|
JNK (P-Thr183)
|
MEK (P-Ser217/Ser221)
|
MKK3 (P-Ser189)
|
MKK6 (P-Ser207)
|
|
MSK2 (P-Ser360)
|
mTOR (P-Ser2448)
|
p38 (P-Thr180/Tyr182)
|
P53 (P-Ser15)
|
P70S6K (P-Thr421/Ser424)
|
|
RSK1 (P-Ser380)
|
RSK2 (P-Ser386)
|
|||
Kit Components
- Human/Mouse MAPK Phosphorylation Antibody Array C1 Membranes
- Blocking Buffer
- Detection Antibody Cocktail
- 1,000X HRP-Anti-Rabbit-IgG Concentrate
- 20X Wash Buffer I Concentrate
- 20X Wash Buffer II Concentrate
- 2X Cell Lysis Buffer Concentrate
- Detection Buffer C
- Detection Buffer D
- 8-Well Incubation Tray w/ Lid
- Protease Inhibitor Cocktail
- 100x Phosphatase Inhibitor Cocktail I
- Phosphatase Inhibitor Cocktail II
- Plastic Sheets

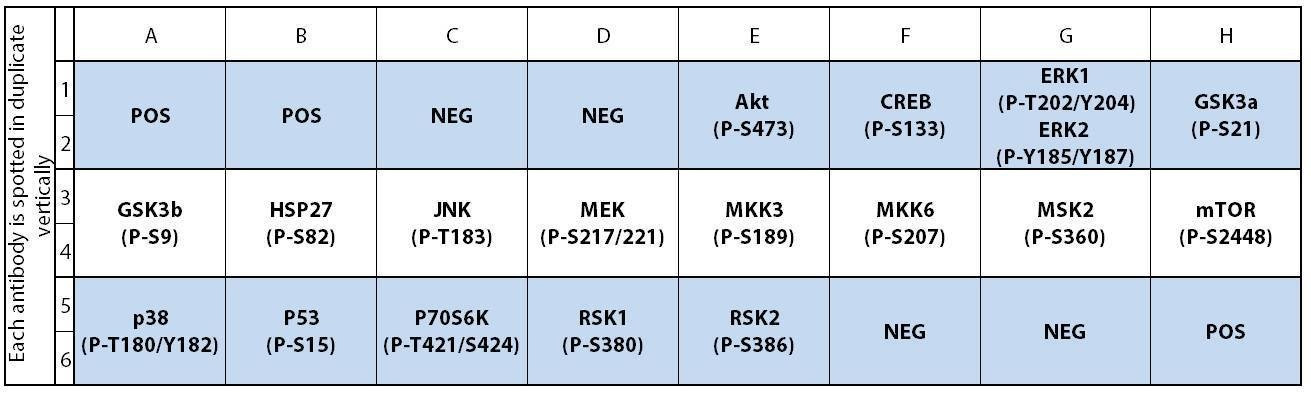

- Array Map Template
- Manual
Additional Materials Required
- Pipettors, pipet tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Tissue Paper, blotting paper or chromatography paper
- Adhesive tape or Saran Wrap
- Distilled or de-ionized water
- A chemiluminescent blot documentation system (such as UVP??s ChemiDoc-It® or EpiChem II Benchtop Darkroom or GE's ImageQuant™ LAS 4000 or Amersham Imagers 600 and 680), X-ray Film and a suitable film processor, or another chemiluminescent detection system.
Assay Procedure Summary
- Block membranes
- Incubate with Sample
- Incubate with Detection Antibody Cocktail
- Incubate with HRP-Conjugated anti-IgG
- Incubate with Detection Buffers
- Image with chemiluminescent imaging system
- Perform densitometry and analysis

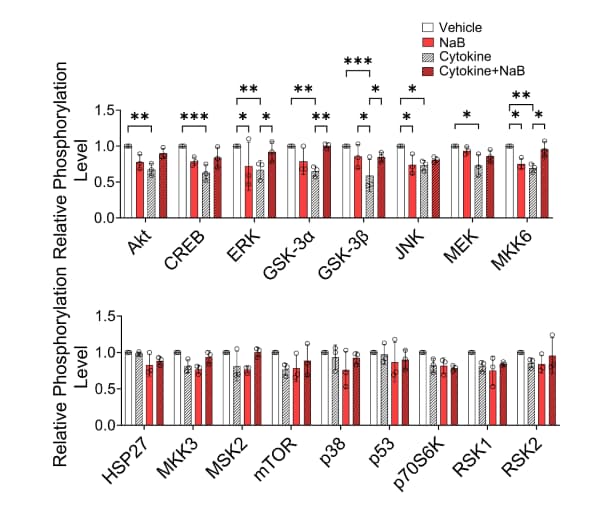

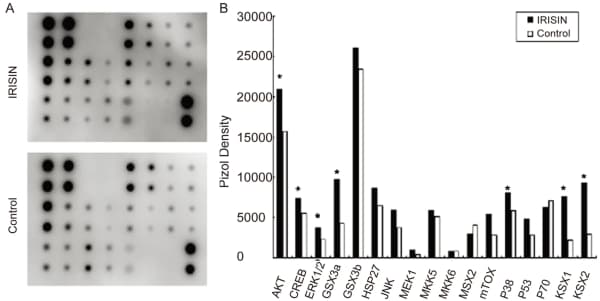

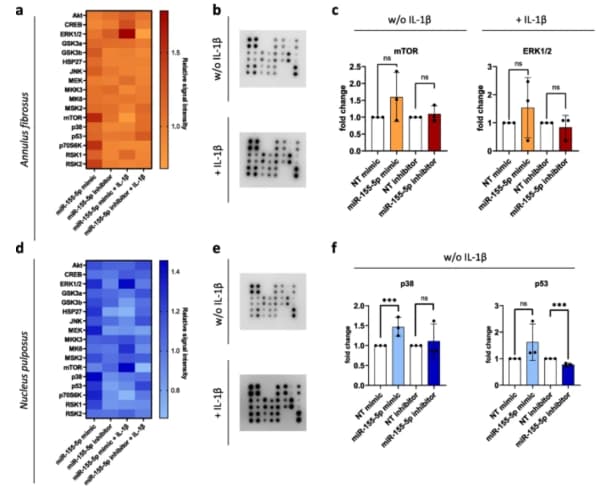

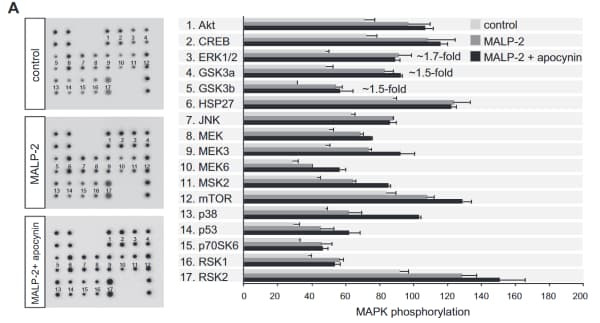

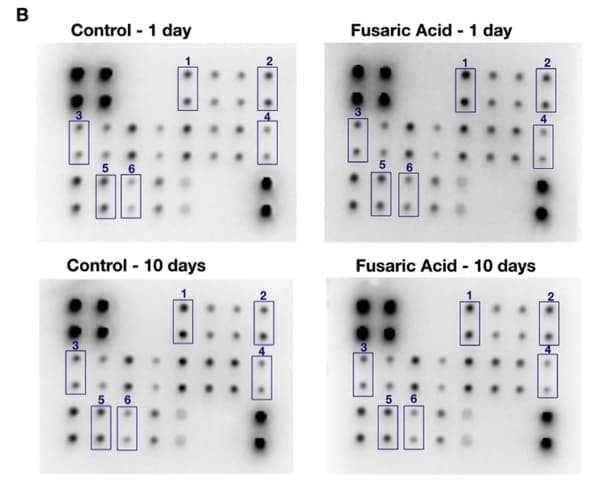

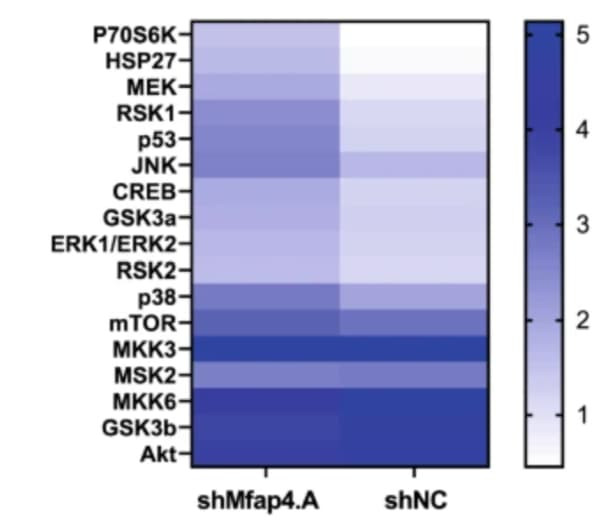

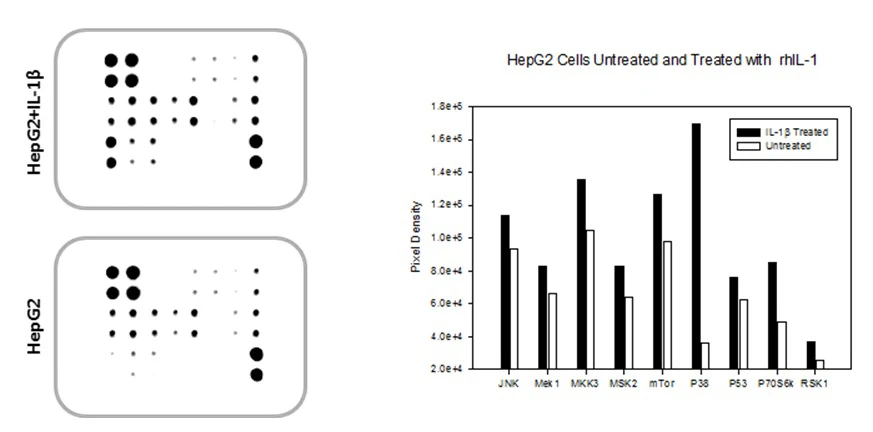

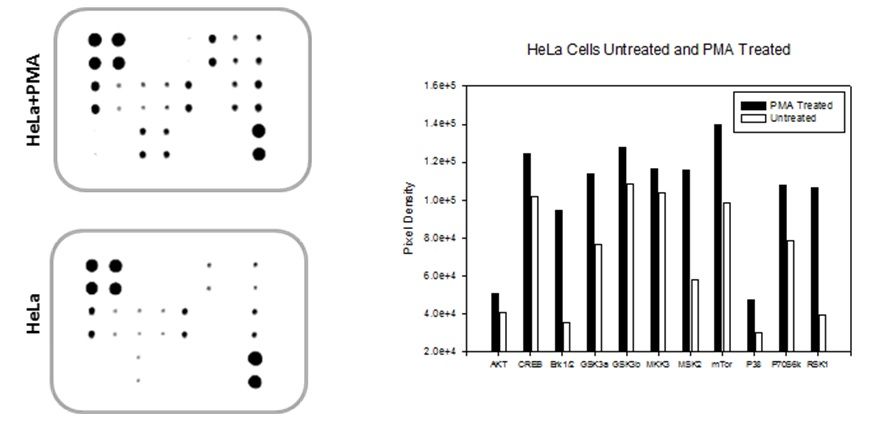

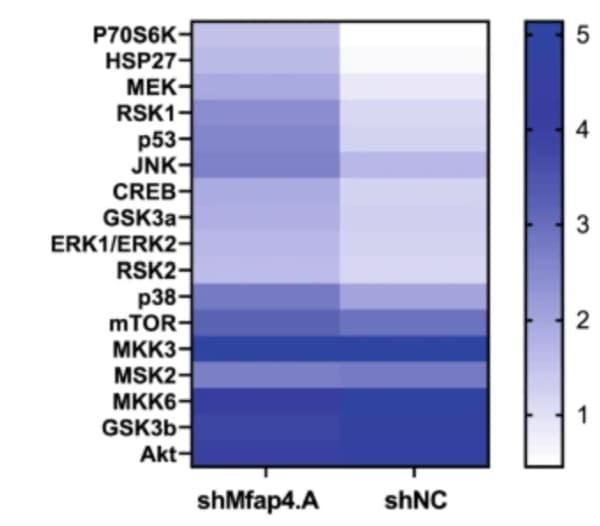

Typical Data
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array membranes and 1X Blocking Buffer at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
