Human TMIGD2/CD28H ELISA Kit

RayBio® Human TMIGD2/CD28H ELISA Kit.

$679.00

Human TMIGD2/CD28H ELISA Kit

RayBio® Human TMIGD2/CD28H ELISA Kit.

Product Description

Specifications

Size	1 Plate Kit, 2 Plate Kit, 5 Plate Kit
Estimated Lead Time	4-7 weeks
Species	Human
Accession Number	Q96BF3
Protein Name / Synonyms	Transmembrane and immunoglobulin domain-containing protein 2 (CD28 homolog) (Immunoglobulin and proline-rich receptor 1) (IGPR-1)
Quantitative/Semi-Quantitative	Quantitative
Solid Support	96-well Microplate
Design Principle	Sandwich-based
Method Of Detection	Colorimetric
Research Area	Angiogenesis, Adaptive Immunity
Shipping Type	Blue ice
Storage	-20°C
Note	This ELISA uses an antibody pair and standard that have been validated for multiplex array products, but not for the 96-well plate ELISA format. Thus, this ELISA requires a 4 - 7 week development phase, which RayBiotech begins after receiving an order for the kit. After development, the kit will have passed RayBiotech's ELISA quality control tests, and will thereafter have a typical 1 - 2 day lead time for orders placed.

Product Features

Strip plates and additional reagents allow for use in multiple experiments
Quantitative protein detection
Establishes normal range
The best products for confirmation of antibody array data

Application Notes

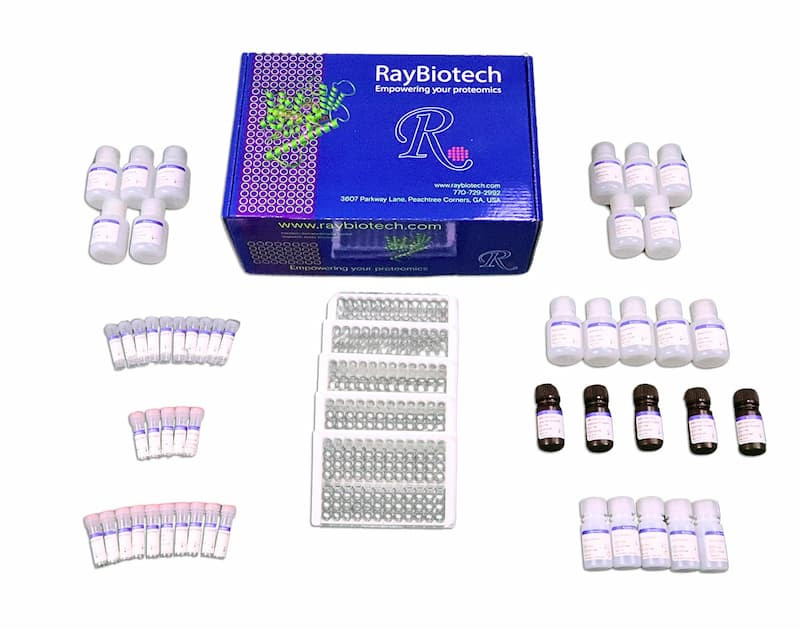

Kit Components

Pre-Coated 96-well Strip Microplate
Wash Buffer
Stop Solution
Assay Diluent(s)
Lyophilized Standard
Biotinylated Detection Antibody
Streptavidin-Conjugated HRP
TMB One-Step Substrate

Other Materials Required

Distilled or deionized water
Precision pipettes to deliver 2 µl to 1 µl volumes
Adjustable 1-25 µl pipettes for reagent preparation
100 µl and 1 liter graduated cylinders
Tubes to prepare standard and sample dilutions
Absorbent paper
Microplate reader capable of measuring absorbance at 450nm
Log-log graph paper or computer and software for ELISA data analysis

Protocol Outline

Prepare all reagents, samples and standards as instructed in the manual.
Add 100 µl of standard or sample to each well.
Incubate 2.5 h at RT or O/N at 4°C.
Add 100 µl of prepared biotin antibody to each well.
Incubate 1 h at RT.
Add 100 µl of prepared Streptavidin solution to each well.
Incubate 45 min at RT.
Add 100 µl of TMB One-Step Substrate Reagent to each well.
Incubate 30 min at RT.
Add 50 µl of Stop Solution to each well.
Read at 450 nm immediately.

Storage/Stability

The entire kit may be stored at -20°C for up to 1 year from the date of shipment. Avoid repeated freeze-thaw cycles. The kit may be stored at 4°C for up to 6 months. For extended storage, it is recommended to store at -80°C.

Have this product in hand?

Get your lot-specific datasheet at Ray's Docs. The datasheet linked below is our current version and may not match your lot.

Datasheet (EL-PRELIM.pdf)

SDS (EL-PRELIM.pdf)

Excel (5af824478c7690acd2cf4518aeaae2058a44fa75.xlsm)
