Product Features
- More cost-effective than traditional ELISA
- High specificity and system reproducibility
- Suitable for diverse sample types
- Low sample volume requirement: 50 µL or less
- Get results same day (6-hour processing time)
- Well-suited for high throughput assays
- Q Analyzer software provides one-step computation

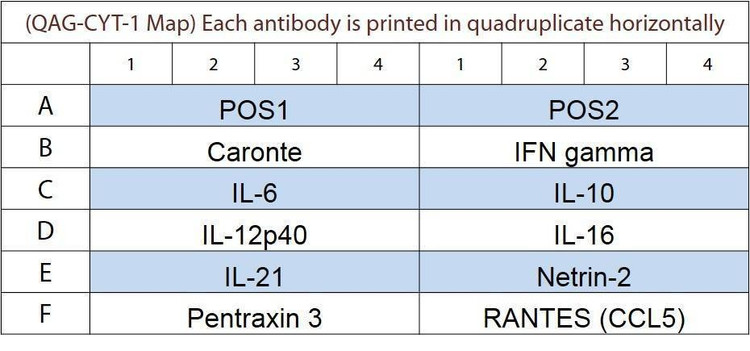

Target Names
| Scroll over each target protein for more information |
|---|
Caronte- Gene Symbol: CAR
- Gene ID: 395623
- Accession #: Q9PUK2
| IFN-gamma- Gene Symbol: IFNG
- Gene ID: 396054
- Accession #: P49708
| IL-6- Gene Symbol: IL6
- Gene ID: 395337
- Accession #: Q90YI0
| IL-10- Gene Symbol: IL10
- Gene ID: 428264
- Accession #: Q6A2H4
| IL-12 p40- Gene Symbol: IL-12B IL12B
- Gene ID: 404671
- Accession #: Q6X0K9
|
IL-16- Gene Symbol: IL-16 IL16
- Gene ID: 374270
- Accession #: Q70XC4
| IL-21- Gene Symbol: IL21
- Gene ID: 554218
- Accession #: Q58IU6
| Netrin-2
(Netrin-3)- Gene Symbol: NTN3 NTN2
- Gene ID: 396387
- Accession #: Q90923
| Pentraxin-3
(TSG-14)- Gene Symbol: PTX3
- Accession #: R4GIZ2
| RANTES
(CCL5)- Gene Symbol: CCL5
- Gene ID: 417465
- Accession #: Q8QG57
|
Application Notes
Suggested Application
Multiplexed Protein Detection; Biomarker Screening; Identifying Key Factors; Confirming Biological Process; Biomarker Validation; Validation of Antibody Array Results; Quantitative Protein Detection; Establishing Normal Range

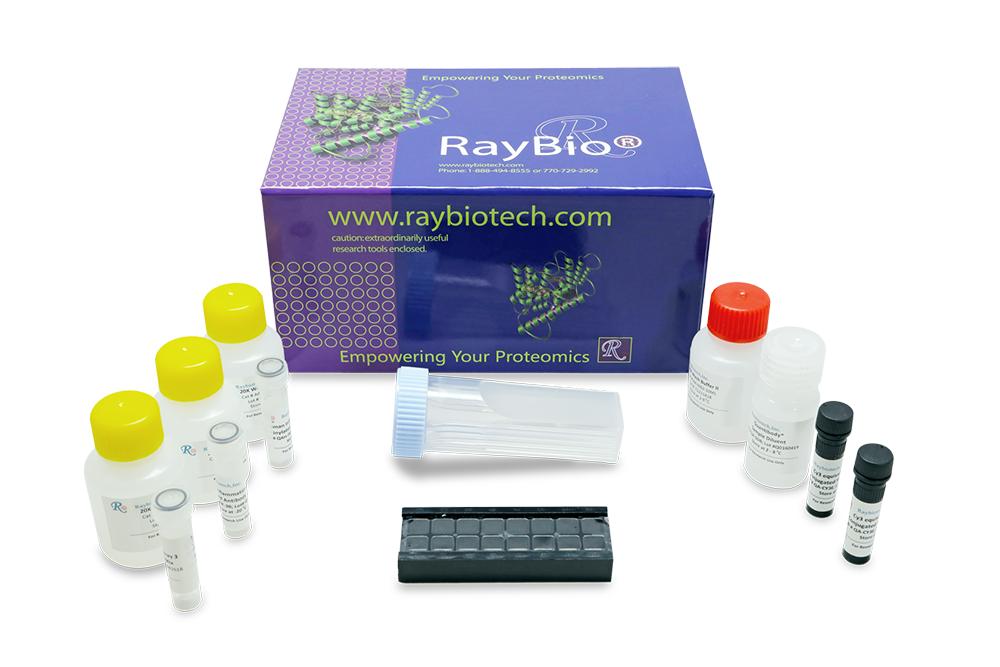

Kit Components
- Chicken Cytokine Array Q1 Slide(s)
- Blocking Buffer
- Wash Buffer 1
- Wash Buffer 2
- Lyophilized Standard Mix
- Biotinylated Detection Antibody Cocktail
- Streptavidin-Conjugated Fluor
- Slide Washer/Dryer
- Adhesive Plastic Strips
- Manual
Other Materials Required
- Distilled or deionized water
- Small plastic boxes or containers
- Pipettors, pipette tips and other common lab consumables
- Orbital shaker or oscillating rocker
- Aluminum foil
- Gene microarray scanner or similar laser fluorescence scanner
View Compatible Laser ScannersDon't have a compatible scanner? RayBiotech now offers FREE scanning service for all RayBio glass slide antibody arrays!
Learn MoreProtocol Outline
- Dry the glass slide
- Prepare Standards
- Block array surface
- Incubate with Samples and Standards
- Incubate with Biotinylated Detection Antibody Cocktail
- Incubate with Streptavidin-Conjugated Fluor
- Disassemble the glass slide
- Scan with a gene microarray laser scanner
- Perform densitometry and analysis
Storage/Stability
For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array slide(s), standard mix, detection antibody cocktail, and Cy3-Conjugated Streptavidin at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
