RayBio® Human Phosphotyrosine ErbB4 ELISA Kit. This assay semi-quantitatively measures phosphotyrosine ErbB4 in lysate samples.
Loading...
Loading...
Loading...
Loading...
Product Description
Specifications
| Size | 1 Plate Kit, 2 Plate Kit, 5 Plate Kit |
| Estimated Lead Time | 1-2 business days |
| Species | Human |
| Specificity | This ELISA kit recognizes human ErbB4 phosphotyrosine. |
| Compatible Sample Types | Tissue Lysates, Cell Lysates |
| Accession Number | Q15303 |
| Gene Id | 2066 |
| Gene Symbols | ERBB4, HER4 |
| Protein Name / Synonyms | Receptor tyrosine-protein kinase erbB-4 (EC 2.7.10.1) (Proto-oncogene-like protein c-ErbB-4) (Tyrosine kinase-type cell surface receptor HER4) (p180erbB4) [Cleaved into: ERBB4 intracellular domain (4ICD) (E4ICD) (s80HER4)] |
| Quantitative/Semi-Quantitative | Semi-Quantitative |
| Solid Support | 96-well Microplate |
| Design Principle | Sandwich-based |
| Method Of Detection | Colorimetric |
| Research Area | Cardiovascular Disease, Cancer, Post-Translational Modifications, Phosphorylation, Tyrosine Kinase Signaling |
| Shipping Type | Blue ice |
| Storage | -20°C |
Product Features
- Rapidly measure phosphorylated protein in lysates
- Screen numerous different cell lysates without performing a Western Blot analysis
- Minimal hands-on time, convenient, and non-radioactive material
Application Notes
Kit Components
- Pre-Coated 96-well Strip Microplate
- Wash Buffer
- Biotinylated Anti-Phosphotyrosine Antibody
- Stop Solution
- Assay Diluent(s)
- Positive Control Sample
- Lysis Buffer
- Streptavidin-Conjugated HRP
- TMB One-Step Substrate
Other Materials Required
- Distilled or deionized water
- 100 ml and 1 liter graduated cylinders
- Tubes to prepare sample dilutions
- Protease and Phosphatase inhibitors
- Precision pipettes to deliver 2 µl to 1 ml volumes
- Adjustable 1-25 ml pipettes for reagent preparation
- Benchtop rocker or shaker
- Microplate reader capable of measuring absorbance at 450 nm
Protocol Outline
- Prepare all reagents and samples as instructed in the manual.
- Add 100 µl of sample or positive control to each well.
- Incubate 2.5 h at RT or O/N at 4 °C.
- Add 100 µl of prepared primary antibody to each well.
- Incubate 1 h at RT.
- Add 100 µl of prepared 1X HRP-Streptavidin to each well.
- Incubate 1 h at RT.
- Add 100 µl of TMB One-Step Substrate Reagent to each well.
- Incubate 30 min at RT.
- Add 50 µl of Stop Solution to each well.
- Read at 450 nm immediately.
Typical Data
Positive Control
T47D cells were treated with Pervanadate at 37°C for 10 min. Solubilize cells at 4 x 107 cells/ml in lysis buffer. Serial dilutions of lysates were analyzed in this ELISA. Please see step 3 of Part VI Reagent Preparation for detail.

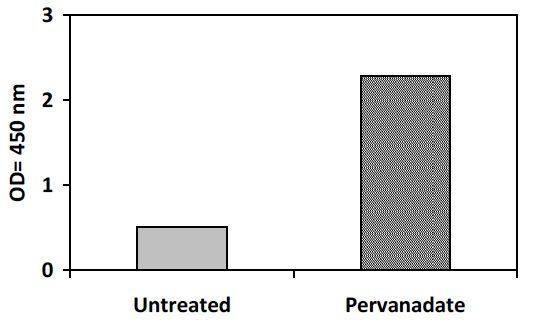

Pervanadate Stimulation of T47D Cell Line
T47D cells were treated or untreated with Pervanadate for 10 min at 37oC. Cell lysates were analyzed using this phosphoELISA.
Storage/Stability
Upon receipt, the kit should be stored at –20°C. Please use within 6 months from the date of shipment.
