The RayBiotech Human Phospho-ATR (T1989) ELISA Kit measures phosphorylated ATR (Thr1989) and total (pan) ATR in cell and tissue lysates.
Loading...
Loading...
Loading...
Loading...
Product Description
Specifications
| Size | 1 Plate Kit, 2 Plate Kit, 5 Plate Kit |
| Estimated Lead Time | 1-2 business days |
| Species | Human |
| Specificity | This ELISA kit recognizes Human ATR phosphorylated at site Threonnine-1989. |
| Compatible Sample Types | Tissue Lysates, Cell Lysates |
| Accession Number | Q13535 |
| Gene Id | 545 |
| Gene Symbols | ATR, FRP1 |
| Protein Name / Synonyms | Serine/threonine-protein kinase ATR (EC 2.7.11.1) (Ataxia telangiectasia and Rad3-related protein) (FRAP-related protein 1) |
| Quantitative/Semi-Quantitative | Semi-Quantitative |
| Solid Support | 96-well Microplate |
| Design Principle | Sandwich-based |
| Method Of Detection | Colorimetric |
| Research Area | Cancer, Post-Translational Modifications, Phosphorylation |
| Shipping Type | Blue ice |
| Storage | -20°C |
Product Features
- Simultaneously measure phosphorylated protein and pan protein in one experiment (for normalization purpose)
- Screen numerous different cell lysates without performing a Western Blot analysis
- Minimal hands-on time, convenient, and non-radioactive material
Application Notes
Kit Components
- Pre-Coated 96-well Strip Microplate
- Wash Buffer
- Anti-Phospho Antibody
- Anti-Pan Antibody (*not included in phospho-only version)
- HRP-Conjugated Secondary Antibody
- Assay Diluent
- TMB One-Step Substrate
- Stop Solution
- Lysis Buffer
- Positive Control Sample
Other Materials Required
- Distilled or deionized water
- 100 ml and 1 liter graduated cylinders
- Tubes to prepare sample dilutions
- Protease and Phosphatase inhibitors
- Precision pipettes to deliver 2 µl to 1 ml volumes
- Adjustable 1-25 ml pipettes for reagent preparation
- Benchtop rocker or shaker
- Microplate reader capable of measuring absorbance at 450 nm
Protocol Outline
- Prepare all reagents and samples as instructed in the manual.
- Add 100 µl of sample or positive control to each well.
- Incubate 2.5 h at RT or O/N at 4 °C.
- Add 100 µl of prepared primary antibody to each well.
- Incubate 1 h at RT.
- Add 100 µl of prepared 1X HRP-Streptavidin to each well.
- Incubate 1 h at RT.
- Add 100 µl of TMB One-Step Substrate Reagent to each well.
- Incubate 30 min at RT.
- Add 50 µl of Stop Solution to each well.
- Read at 450 nm immediately.
Typical Data

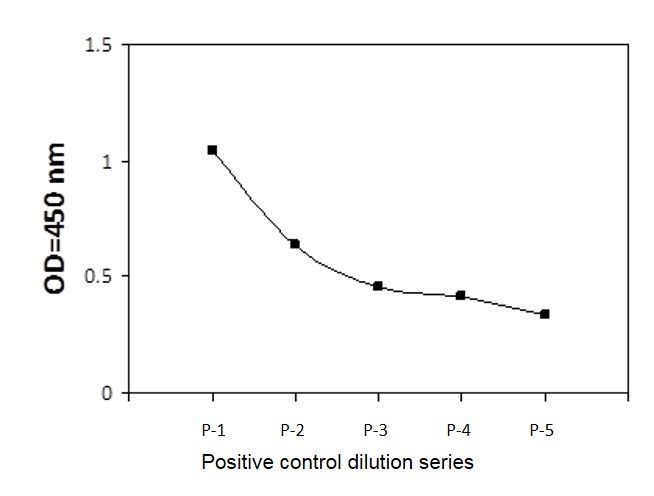

Positive Control
T47D cells were exposed to 50J/m2 of UV light followed by a 4 hours recovery period. Cells were solubilzed at 4 x 107 cells/ml in Cell Lysate Buffer. Serial dilutions of lysates were analyzed in this ELISA (see Reagent Preparation step 4).

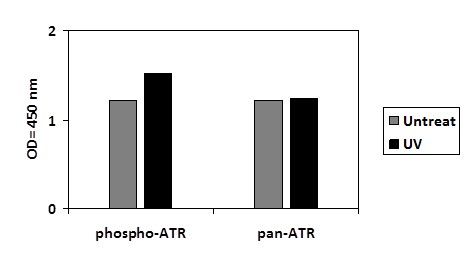

UV irradiation of T47D Cell Line

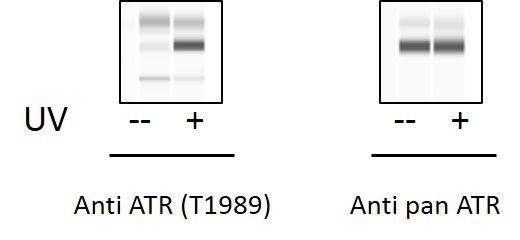

T47D cells were untreated or treated with UV. Cell lysates were analyzed using this phosphoELISA and Western Blot.
Storage/Stability
Upon receipt, the kit should be stored at –20°C. Please use within 6 months from the date of shipment.
