Introduction
Protein lactylation plays an unusually prominent role in cell signaling, development, and growth. The RayBio Human Protein Lactylation Antibody Array 2 is a very rapid, convenient, and sensitive assay that can simultaneously detect multiple lactylation events on proteins. It can also be used to monitor the activation or function of important biological pathways.
RayBiotech is committed to developing a series of lactylation antibody arrays. The RayBio Human Protein Lactylation Antibody Array 2 is specifically designed for the simultaneous identification of the relative levels of lysine lactylation in 493 different human proteins in cell lysate. By monitoring changes in protein lactylation in your experimental model system, you can verify pathway activation in your cell lines without the need for extensive time and effort required for immunoprecipitation and/or Western Blot analysis.

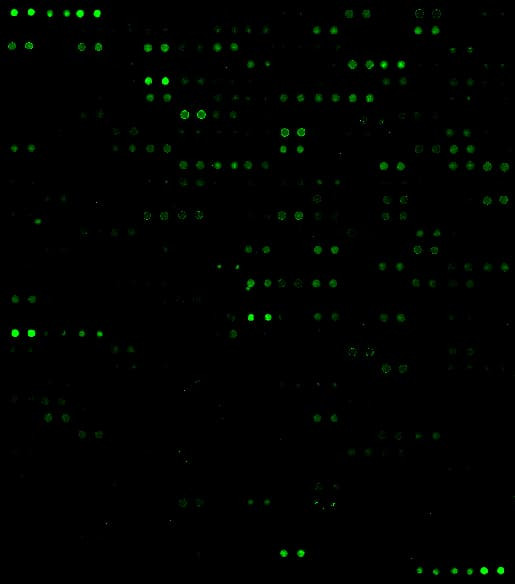

To use the RayBio Human Protein Lactylation Antibody Array 2, treated or untreated cell lysate is added to the antibody array glass slide wells. The antibody array slide wells are then washed, and a biotinylated anti-Lactyllysine antibody is used to detect the lactylated lysine residues on target proteins. After incubation with a fluorescent dye-conjugated streptavidin (Cy3 equivalent), the slides can be imaged using a laser scanner, such as the Axon GenePix, in the Cy3 channel.
Product Features
- High sensitivity and specificity
- Low sample volume (10-100 µL per array)
- Large dynamic range of detection
- Compatible with most sample types
- Test 4 or 8 samples on each slide
- Suitable for high-throughput assays
Target Names
11b-HSD1, 2B4, 4-1BB, A1BG, A2M, ABL1, ACE, ACE-2, ACK1, ACPP, ACTH, ADAM-9, ADAMTS-1, ADAMTS-10, ADAMTS-13, ADAMTS-15, ADAMTS-17, ADAMTS-18, ADAMTS-19, ADAMTS-4 , ADAMTS-5, ADAMTS-L2, Adipsin, Afamin, AFP, ALBUMIN, Aldolase A, Aldolase B, Aldolase C, ALK, Alpha 1 AG, Alpha 1 Microglobulin, Alpha Lactalbumin, ALPP, AMICA, AMPKa1, Amylin, ANGPTL3, ANGPTL4, Annexin A7, APC, APCS, Apelin, Apex1, APN, ApoA1, ApoA2, ApoA4, ApoB, ApoB100, ApoC1, ApoC2, ApoC3, ApoD, ApoE, ApoE3, ApoH, ApoM, APP, ASPH, Attractin, B3GNT1, BAF57, BAFF, BAI-1, BCAM, Beta 2M, Beta Defensin 4, Beta IG-h4, Biglycan, BLAME, BMP-9, BMX, BNIP2, BNP, Btk, C2, C3a, C5/C5a, C7, C8B, C9, CA125, CA15-3, CA19-9, CA9, Cadherin-13, Calbindin, Calbindin D, Calcitonin, Calreticulin, Calsyntenin-1, CART, Caspase-3, Caspase-8, Cathepsin B, Cathepsin D, Cathepsin L, Cathepsin S, CBP, CCK, CD200, CD23, CD24, CD36, CD38, CD44, CD45, CD46, CD47, CD55, CD59, CD61, CD71, CD74, CD79 alpha, CD90, CD97, CEA, CEACAM-1, Ceruloplasmin, CFHR2, Chemerin, CHI3L1, Chromogranin A, Chymase, cIAP-2, Ck beta 8-1, CK-MB, Claudin-3, Claudin-4, CLEC3B, Clusterin, CNDP1, COCO, Complement factor H, Contactin-1, Contactin-2, Corticosteroid-binding globulin, COX-2, C-peptide, CPN2, Creatinine, CRP, CRTAM, CSH1, cTnT / Troponin T, CutA, Cyclin D1, Cystatin A, Cystatin B, Cystatin C, Cytochrome C, Cytokeratin 8, Cytokeratin18, Cytokeratin19, DBI, DCBLD2, D-Dimer, DEFA1/3, Defensin, Desmin, DLL1, DLL4, DMP-1, DPPIV, E-Cadherin, Endorphin Beta, Endothelin Receptor A, Enolase 2, ENPP2, EpCAM, EphA1, EphA2, EphA3, EphA4, EphA5, EphA6, EphA7, EphA8, EphB1, EphB2, EphB3, EphB4, EphB6, ERRa, Erythropoietin R, ESAM, EV15L, EXTL2, FABP1, FABP2, FABP3, FABP4, Factor XIII A, Factor XIII B, FAK, FAP, Fc RIIB/C, Fen 1, FER, Ferritin, Fetuin A, Fetuin B, FGFR1, FGFR1 alpha, FGFR2, Fibrinogen, Fibrinopeptide A, Fibronectin, Ficolin-3, FIH, FOLR1, FOXN3, FoxO1, FoxP3, FRK, FSH, Furin, Fyn, GADD45A, Galanin, Galectin-1, Galectin-3BP, Galectin-7, gamma-Thrombin, Gas1, Gastrin, GATA-3, GATA-4, Gelsolin, Ghrelin, GLP-1, GMNN, GPBB, GPI, GPR-39, GPX1, GPX3, GRP, GRP75, GRP78, GSR, GST, HADHA, HAI-1, HAI-2, Haptoglobin, hCG alpha, hCGb, Hck, HE4, Hemopexin, Hepcidin, HOXA10, HSP10, HSP20, HSP27, HSP32, HSP40, HSP60, HSP70, HSP90, HSPA8, HTRA2, IBSP, IGF2BP1, IGFBP-5, IL-23p19, IL-33, IL-34, IL36RN, INSL3, INSRR, Integrin alpha V, Itk, ITM2B, Kallikrein 10, Kallikrein 11, Kallikrein 14, Kallikrein 2, Kallikrein 5, Kallikrein 6, Kallikrein 7, Kallikrein 8, KCC3, KCTD10, KIF3B, KLF4, LAG-3, Layilin, LDL R, Legumain, LH, LIMPII, LIN41, Livin, LOX-1, LPS, LRG1, LTF, LTK, Lumican, Lyn, LYRIC, LYVE-1, LZTS1, Mammaglobin A, Marapsin, MATK, MBL, MBL-2, Mer, Mesothelin, MICB, Midkine, MINA, MSHa, MTUS1, Myoglobin, NAIP, Nanog, NELL2, NEP, Nesfatin, Nestin, NET1, Netrin G2, Netrin-4, Neurokinin-A, Neuropeptide Y, NF1, NM23-H1/H2, Notch-1, NPTX1, NPTXR, NR3C3, Ntn1, OCT3/4, Omentin, Osteocalcin, Osteopontin, OX40, p21, p27, p53, PAI-1, PAK7, Pancreastatin, Pancreatic Polypeptide, Pappalysin-1, PARK7, P-Cadherin, PCAF, PD-1, PDX-1, PEDF , PEPSINOGEN I, PEPSINOGEN II, PGRP-S, PI 16, PI 3Kinase p85 beta, PIM2, PKM2, Plasminogen, Podocalyxin, POMC, PON1, PON2, PPARg2, PPP2R5C, Presenilin 1, Presenilin 2, Pro-BDNF, Procalcitonin, Pro-Cathepsin B, Progesterone, pro-Glucagon, Prohibitin, Pro-MMP-13, Pro-MMP-7, Pro-MMP-9, ProSAAS, Prostasin, Protein p65, PSA-Free, PSA-total, PSP, PTH, PTHLP, PTN, PTPRD, PYK2, PYY, Ras, RBP4, RECK, RELM alpha, Resistin, RET, RIP1, ROCK1, ROCK2, ROR1, ROR2, ROS, RYK, S100A4, S100A6, S100A8, S-100b, SART1, SART3, SCG3, Selenoprotein P, SEMA3A, Serotonin, Serpin A1, Serpin A12, Serpin A3, Serpin A4, Serpin A5, Serpin A8, Serpin A9, Serpin B5, Serpin D1, Serpin I1, SERTAD2, SHBG, SMAC, SNCG, Somatotropin, SOST, SOX17, SOX2, SPARCL1, SPINK1, SRMS, SSEA-1, SSEA-4, SSTR2, SSTR5, Survivin, SYK, Syndecan-1, Syndecan-3, TACE, TAF4, Tec, TFF1, TFF3, Thrombin, Thrombomodulin, Thymidine Kinase-1, Thyroglobulin, TIM-1, TNK1, TOPORS, TPA, TPM1, TRA-1-60, TRA-1-81, Transferrin, Trappin-2, TRKB, Troponin C, Troponin I, TRPC1, TRPC6, TRPM7, Trypsin 1, TSH, TSLP, TXK, Tyk2, TYRO10, Uromodulin, Vasopressin, VDUP-1, VEGF R1, VGF, VIP Receptor 2, Visfatin, Vitamin D Receptor, Vitamin D-BP, Vitamin K-dependent protein S, Vitronectin, VWF, Wilms Tumor 1, XIAP, ZAG, ZAP70
Kit Components
- Human Antibody Array Slide(s)
- Blocking Buffer
- Biotinylated Detection Antibody
- Fluorescent Dye-Conjugated Streptavidin
- Wash Buffer I
- Wash Buffer II
- Wash Buffer III
- Lysis Buffer
- Protease Inhibitor Cocktail
- Adhesive film
Additional Materials Required
- Shaker
- Laser scanner for fluorescence detection
- Aluminum foil
- Distilled water
- Plastic box
- 50 mL Centrifuge tube
- Isopropanol (2-propanol)
Assay Procedure Summary
- Dry the glass slide
- Add Blocking Buffer to each well and incubate.
- Add the sample to each well and incubate.
- Wash the wells.
- Add Biotinylated Detection Antibody solution to each well and incubate.
- Add Fluorescent Dye-Conjugated Streptavidin solution to each well and incubate.
- Scan with a gene microarray laser scanner
- Perform densitometry and analysis
Storage/Stability
Store kit at ≤ -20°C immediately upon arrival. Kit must be used within the 6 months expiration date.
