RayBio® Mouse DNAM-1/CD226 ELISA Kit for Cell Culture Supernatants, Plasma, and Serum samples.
Lead time: Typically ships within 1-2 business days. No Friday shipments.
Loading...
Loading...
Loading...
Loading...
Product Description
Specifications
| Size | 1 Plate Kit, 2 Plate Kit, 5 Plate Kit |
| Estimated Lead Time | 1-2 business days |
| Species | Mouse |
| Sensitivity | 0.52 ng/ml |
| Detection Range | 0.52 ng/ml - 180 ng/ml |
| Specificity | This ELISA antibody pair detects mouse DNAM-1. Other species not determined. |
| Compatible Sample Types | Cell Culture Supernatants, Plasma, Serum |
| Recommended Dilution (Serum/Plasma) | 2 fold |
| Species Detected | Mouse |
| Accession Number | Q8K4F0 |
| Protein Name / Synonyms | CD226 antigen (Platelet and T-cell activation antigen 1) (CD antigen CD226) |
| Quantitative/Semi-Quantitative | Quantitative |
| Solid Support | 96-well Microplate |
| Design Principle | Sandwich-based |
| Method Of Detection | Colorimetric |
| Research Area | Cancer, Adaptive Immunity |
| Shipping Type | Blue ice |
| Storage | -20°C |
Product Features
- Strip plates and additional reagents allow for use in multiple experiments
- Quantitative protein detection
- Establishes normal range
- The best products for confirmation of antibody array data

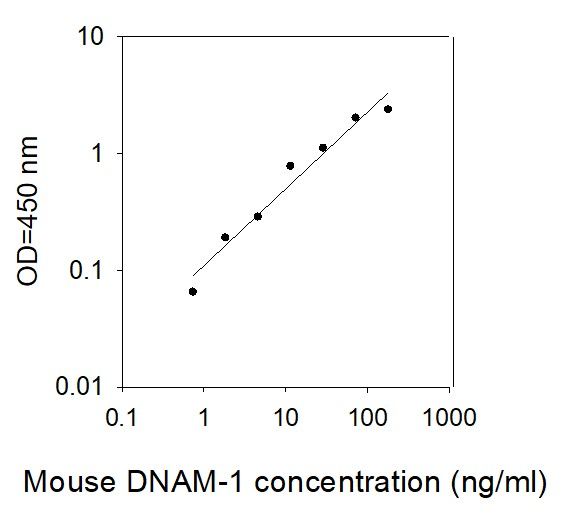

Standard Curves
Spiking & Recovery Results
| Sample Type | Average % Recovery | Range (%) |
|---|---|---|
| Serum | 122.6 | 108-139 |
| Plasma | 116.7 | 100-134 |
| Cell culture media | 117.7 | 105-136 |

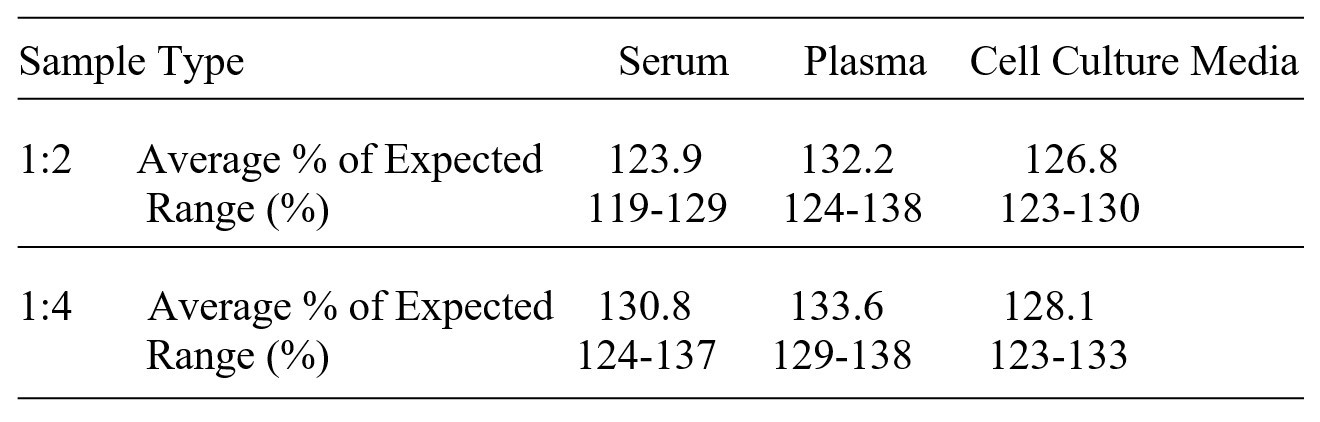

Linearity Results
| Sample Type | Serum | Plasma | Cell Culture Media | |
|---|---|---|---|---|
| 1:2 | Average % of Expected | 123.9 | 132.2 | 126.8 |
| Range (%) | 119-129 | 124-138 | 123-130 | |
| 1:4 | Average % of Expected | 130.8 | 133.6 | 128.1 |
| Range (%) | 124-137 | 129-138 | 123-133 | |
Application Notes

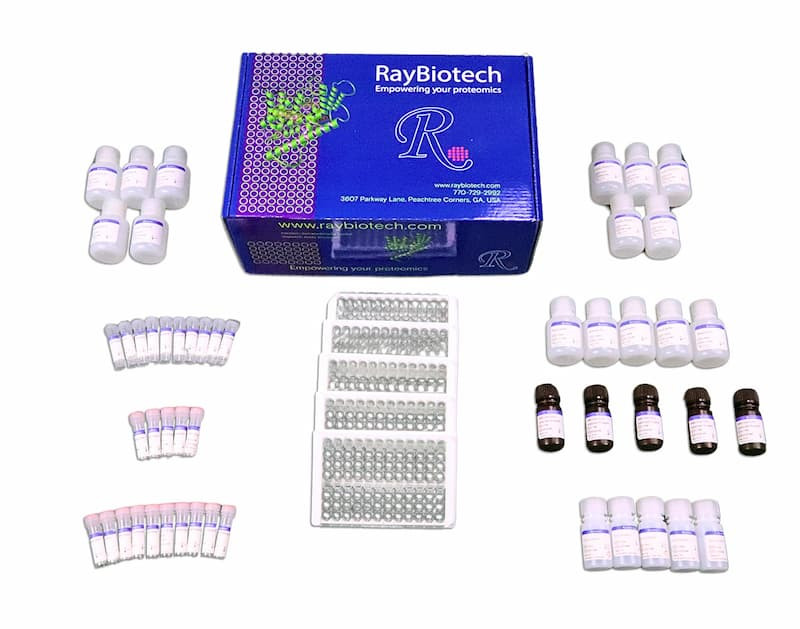

Kit Components
- Pre-Coated 96-well Strip Microplate
- Wash Buffer
- Stop Solution
- Assay Diluent(s)
- Lyophilized Standard
- Biotinylated Detection Antibody
- Streptavidin-Conjugated HRP
- TMB One-Step Substrate
Other Materials Required
- Distilled or deionized water
- Precision pipettes to deliver 2 µl to 1 µl volumes
- Adjustable 1-25 µl pipettes for reagent preparation
- 100 µl and 1 liter graduated cylinders
- Tubes to prepare standard and sample dilutions
- Absorbent paper
- Microplate reader capable of measuring absorbance at 450nm
- Log-log graph paper or computer and software for ELISA data analysis
Protocol Outline
- Prepare all reagents, samples and standards as instructed in the manual.
- Add 100 µl of standard or sample to each well.
- Incubate 2.5 h at RT or O/N at 4°C.
- Add 100 µl of prepared biotin antibody to each well.
- Incubate 1 h at RT.
- Add 100 µl of prepared Streptavidin solution to each well.
- Incubate 45 min at RT.
- Add 100 µl of TMB One-Step Substrate Reagent to each well.
- Incubate 30 min at RT.
- Add 50 µl of Stop Solution to each well.
- Read at 450 nm immediately.
Storage/Stability
The entire kit may be stored at -20°C for up to 1 year from the date of shipment. Avoid repeated freeze-thaw cycles. The kit may be stored at 4°C for up to 6 months. For extended storage, it is recommended to store at -80°C.
