Product Features
- High density arrays
- Unbiased detection through direct biotin labeling of samples
- Low sample consumption
- High detection sensitivity
- Same day result
- Affordable and simple to use
Target Names
Application Notes
Suggested Application
Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker Screening; Identifying Key Factors; Confirming a Biological Process; Cross-species testing

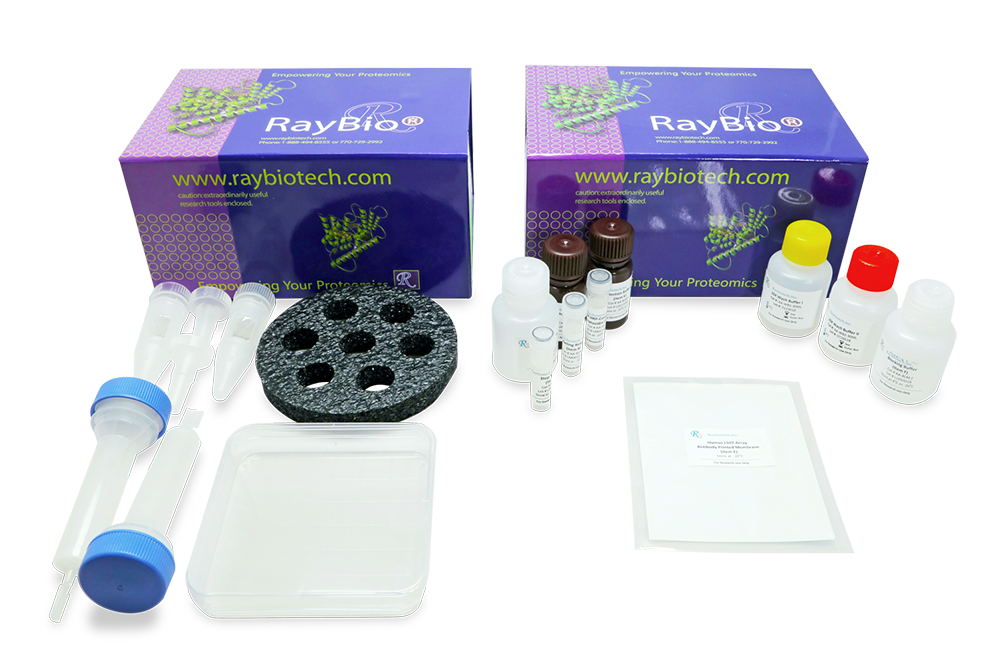

Kit Components
- RayBio® L-Series Antibody Array Membranes
- Labeling Reagent
- Stop Solution
- Blocking Buffer
- Detection Buffer C
- Detection Buffer D
- Wash Buffer 1
- Wash Buffer 2
- HRP-Conjugated Streptavidin Concentrate
- Plastic Sheets
- Spin Columns
- Labeling Buffer
- Lysis Buffer
- Plastic Incubation Tray
Other Materials Required
- Distilled or de-ionized water
- Small plastic or glass containers
- Orbital shaker or oscillating rocker
- Pipettors, pipette tips and other common lab consumables
- 2~5 ml tube
- 15 ml conical collection tube
- Tissue Paper, blotting paper or chromatography paper
- A chemiluminescent blot documentation system (such as UVP's ChemiDoc-It® or EpiChem II Benchtop Darkroom or GE's ImageQuant LAS 4000 or Amersham Imagers 600 and 680), X-ray Film and a suitable film processor, or another chemiluminescent detection system.
Protocol Outline
- Purify Samples with Spin Column
- Biotinylate Samples
- Purify biotinylated samples using spin column
- Block array membranes
- Incubate with Samples
- Incubate with HRP-Conjugated Streptavidin
- Incubate with Detection Buffers
- Image with chemiluminescent imaging system
- Perform densitometry and analysis
Storage/Stability
For best results, store Box 1 frozen at -20°C and Box 2 at 4°C upon arrival. Stored this way the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array membranes at -20°C and all other reagents undiluted at 4°C for no more than 3 months.
