Phospho-VEGFR2 (Y1175) ELISA Kit

The RayBiotech Phospho-VEGFR2 (Y1175) and Total VEGFR2 ELISA Kit is a convenient and sensitive assay that can monitor the activation or function of important biological pathways in human cell lysates.

Product Description

Specifications

Size	1 Plate Kit, 2 Plate Kit, 5 Plate Kit
Estimated Lead Time	1-2 business days
Species	Human
Specificity	The antibody pair provided in this kit recognizes human vascular endothelial growth factor receptor 2 phosphorylated at site Tyrosine-1175.
Compatible Sample Types	Tissue Lysates, Cell Lysates
Accession Number	P35968
Gene Id	3791
Gene Symbols	KDR, FLK1, VEGFR2
Protein Name / Synonyms	Vascular endothelial growth factor receptor 2 (VEGFR-2); Fetal liver kinase 1 (FLK-1); Kinase insert domain receptor (KDR); Protein-tyrosine kinase receptor flk-1
Quantitative/Semi-Quantitative	Semi-Quantitative
Solid Support	96-well Microplate
Design Principle	Sandwich-based
Method Of Detection	Colorimetric
Research Area	Angiogenesis, Cancer, Post-Translational Modifications, Phosphorylation, Autophagy, Tyrosine Kinase Signaling
Shipping Type	Blue ice
Storage	-20°C

Product Features

Simultaneously measure phosphorylated protein and pan protein in one experiment (for normalization purpose)
Screen numerous different cell lysates without performing a Western Blot analysis
Minimal hands-on time, convenient, and non-radioactive material

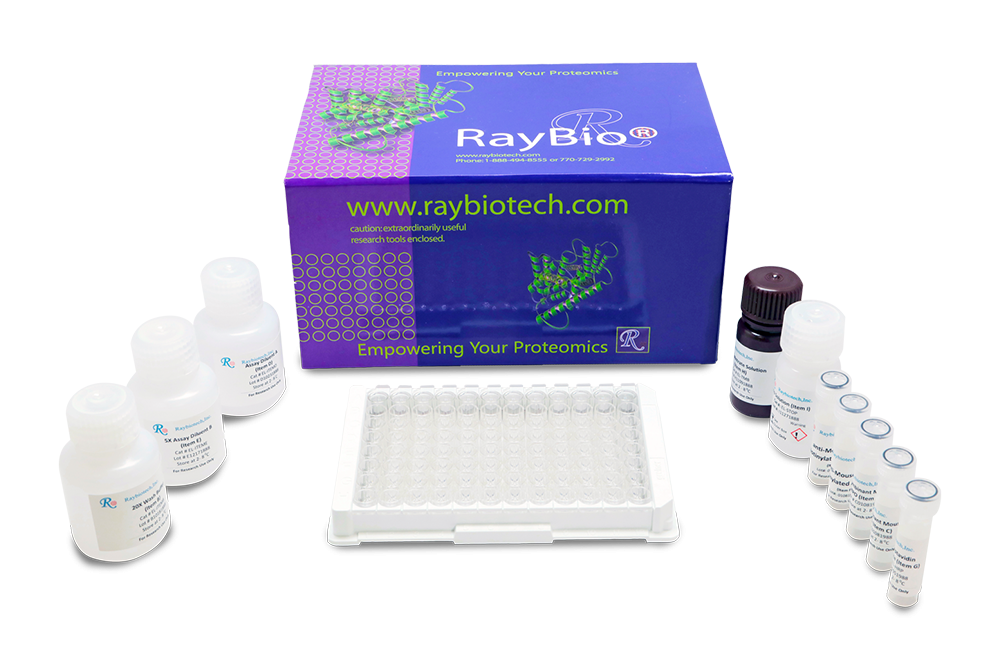

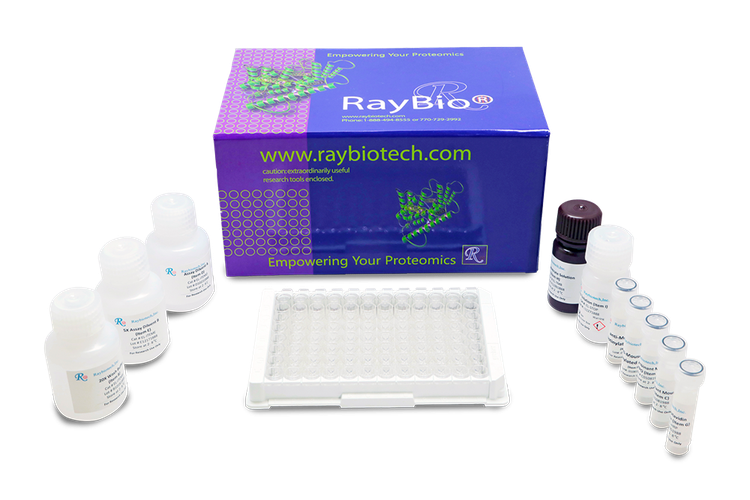

Kit Components

Pre-Coated 96-well Strip Microplate
Positive Control
Anti-Phospho Detection Antibody
Anti-Pan Detection Antibody (*not included in phospho-only version)
HRP-Conjugated Secondary Antibody
HRP-Streptavidin (*not included in phospho-only version)
Wash Buffer
Assay Diluent
Lysis Buffer
TMB One-Step Substrate Reagent
Stop Solution

Additional Materials Required

Microplate reader capable of measuring absorbance at 450 nm
Protease and Phosphatase inhibitors
Shaker
Precision pipettes to deliver 2 µL to 1 mL volumes
Adjustable 1-25 mL pipettes for reagent preparation
100 mL and 1 liter graduated cylinders
Absorbent paper
Distilled or deionized water
Log-log graph paper or computer and software for ELISA data analysis
Tubes to prepare the positive control or sample dilutions

Assay Procedure Summary

Prepare all reagents, samples and positive control as instructed.
Add 100 µL positive control or sample to each well. Incubate 2.5 hours at room temperature or overnight at 4°C with gentle shaking.
Add 100 µL prepared detection antibody to each well. Incubate for 1 hour at room temperature with gentle shaking.
Add 100 µL prepared HRP-Conjugated solution. Incubate for 1 hour at room temperature with gentle shaking.
Add 100 µL TMB One-Step Substrate Reagent to each well. Incubate 30 minutes at room temperature.
Add 50 µL Stop Solution to each well. Read at 450 nm immediately.

Storage/Stability

The entire kit may be stored at -20°C for up to 6 months from the date of shipment. Avoid repeated freeze-thaw cycles.

Have this product in hand?

Get your lot-specific datasheet at Ray's Docs. The datasheet linked below is our current version and may not match your lot.

Datasheet (PEL-VEGFR2-Y1175-T.pdf)

Datasheet (PEL-VEGFR2-Y1175.pdf)

SDS (PEL-VEGFR2-Y1175-T.pdf)

SDS (PEL-VEGFR2-Y1175.pdf)
