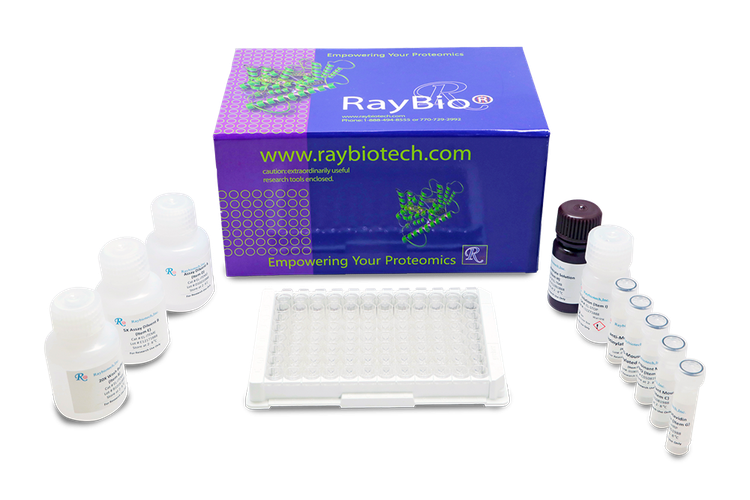

Name: Phosphotyrosine PD-1 ELISA Kit
SKU: PEL-PD1-Y-1
Availability: InStock

Product Description

Specifications

Size	1 Plate Kit, 2 Plate Kit, 5 Plate Kit
Estimated Lead Time	1-2 business days
Species	Human
Specificity	This ELISA antibody pair detects human Phospho PD-1.
Compatible Sample Types	Tissue Lysates, Cell Lysates
Accession Number	Q15116
Gene Id	5133
Gene Symbols	PDCD1, PD1
Protein Name / Synonyms	Programmed cell death protein 1 (Protein PD-1, hPD-1)
Quantitative/Semi-Quantitative	Quantitative
Solid Support	96-well Microplate
Design Principle	Sandwich-based
Method Of Detection	Colorimetric
Research Area	Cancer, Antibody Drug Development, Protein Therapeutics, Autoimmune Disease, Cancer Immunology, Adaptive Immunity
Shipping Type	Blue ice
Storage	-20°C

Product Features

Rapidly measure phosphorylated protein in lysates
Screen numerous different cell lysates without performing a Western Blot analysis
Minimal hands-on time, convenient, and non-radioactive material

Kit Components

Pre-coated 96-well microplate
Positive Control
Anti-phospho Detection Antibody
HRP-Streptavidin
Wash Buffer
Assay Diluent
Lysis Buffer
TMB One-Step Substrate Reagent
Stop Solution

Additional Materials Required

Microplate reader capable of measuring absorbance at 450 nm
Protease and Phosphatase inhibitors
Shaker
Precision pipettes to deliver 2 µL to 1 mL volumes
Adjustable 1-25 mL pipettes for reagent preparation
100 mL and 1 liter graduated cylinders
Absorbent paper
Distilled or deionized water
Log-log graph paper or computer and software for ELISA data analysis
Tubes to prepare the positive control or sample dilutions

Assay Procedure Summary

Prepare all reagents, samples and positive control as instructed.
Add 100 μL of positive control and sample to each well. Incubate 2.5 hours at room temperature or overnight at 4ºC with gentle shaking.
Add 100 μL prepared detection antibody to each well. Incubate for 1 hour at room temperature with gentle shaking.
Add 100 µL prepared HRP-Streptavidin to each well. Incubate for 1 hour at room temperature with gentle shaking.
Add 100 μL TMB One-Step Substrate Reagent to each well. Incubate 30 minutes at room temperature.
Add 50 μL Stop Solution to each well. Read at 450 nm immediately.

Storage/Stability

The entire kit may be stored at -20°C for up to 6 months from the date of shipment. Avoid repeated freeze-thaw cycles.

Product Features

Rapidly measure phosphorylated protein in lysates
Screen numerous different cell lysates without performing a Western Blot analysis
Minimal hands-on time, convenient, and non-radioactive material

Kit Components

Pre-coated 96-well microplate
Positive Control
Anti-phospho Detection Antibody
HRP-Streptavidin
Wash Buffer
Assay Diluent
Lysis Buffer
TMB One-Step Substrate Reagent
Stop Solution

Additional Materials Required

Microplate reader capable of measuring absorbance at 450 nm
Protease and Phosphatase inhibitors
Shaker
Precision pipettes to deliver 2 µL to 1 mL volumes
Adjustable 1-25 mL pipettes for reagent preparation
100 mL and 1 liter graduated cylinders
Absorbent paper
Distilled or deionized water
Log-log graph paper or computer and software for ELISA data analysis
Tubes to prepare the positive control or sample dilutions

Assay Procedure Summary

Prepare all reagents, samples and positive control as instructed.
Add 100 μL of positive control and sample to each well. Incubate 2.5 hours at room temperature or overnight at 4ºC with gentle shaking.
Add 100 μL prepared detection antibody to each well. Incubate for 1 hour at room temperature with gentle shaking.
Add 100 µL prepared HRP-Streptavidin to each well. Incubate for 1 hour at room temperature with gentle shaking.
Add 100 μL TMB One-Step Substrate Reagent to each well. Incubate 30 minutes at room temperature.
Add 50 μL Stop Solution to each well. Read at 450 nm immediately.

Storage/Stability

The entire kit may be stored at -20°C for up to 6 months from the date of shipment. Avoid repeated freeze-thaw cycles.
