Human Cytokine Array C6

RayBio^® C-Series Human Cytokine Antibody Array 6 Kit. Detects 60 Human Cytokines. Suitable for all liquid sample types.

$440.00

Product Description

Specifications

Size	2 Sample Kit, 4 Sample Kit, 8 Sample Kit
Estimated Lead Time	1-2 business days
Species	Human
Compatible Sample Types	Cell Culture Supernatants, Plasma, Serum, Tissue Lysates, Cell Lysates
Quantitative/Semi-Quantitative	Semi-Quantitative
Number of Targets Detected	60
Solid Support	Membrane
Design Principle	Sandwich-based
Method Of Detection	Chemiluminescence
Shipping Type	Blue ice
Storage	-20°C
Storage / Stability	Easy to use No specialized equipment needed Compatible with nearly any liquid sample Proven technology (many publications) Highly sensitive (pg/ml) Sandwich ELISA specificity Higher density than ELISA, Western blot or bead-based multiplex
More Information	Suggested Application Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process

Product Features

Easy to use
No specialized equipment needed
Compatible with nearly any liquid sample
Proven technology (many publications)
Highly sensitive (pg/ml)
Sandwich ELISA specificity
Higher density than ELISA, Western blot or bead-based multiplex

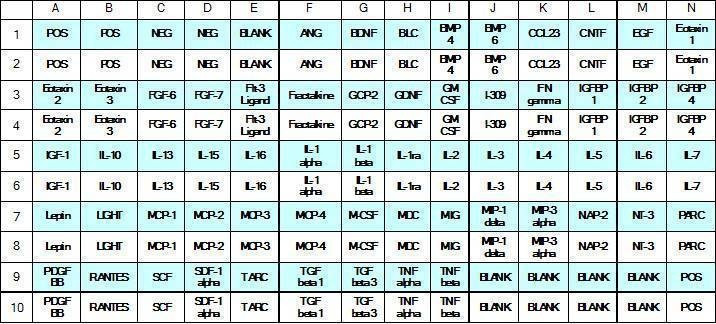

Target Names

Scroll over each target protein for more information
Angiogenin Gene Symbol: ANG Gene ID: 283 Accession #: P03950 ELISA Kit: RayBio Human Angiogenin ELISA	BDNF Gene Symbol: BDNF Gene ID: 627 Accession #: P23560 ELISA Kit: RayBio Human BDNF ELISA	BLC (CXCL13) Gene Symbol: CXCL13 Gene ID: 10563 Accession #: O43927 ELISA Kit: RayBio Human BLC ELISA	BMP-4 Gene Symbol: BMP4 Gene ID: 652 Accession #: P12644 ELISA Kit: RayBio Human BMP-4 ELISA	BMP-6 Gene Symbol: BMP6 Gene ID: 654 Accession #: P22004 ELISA Kit: RayBio Human BMP-6 ELISA
Ck beta 8-1 (CCL23) Gene Symbol: CCL23 Gene ID: 6368 Accession #: P55773 ELISA Kit: RayBio Human Ckbeta8 ELISA	CNTF Gene Symbol: CNTF Gene ID: 1270 Accession #: P26441 ELISA Kit: RayBio Human CNTF ELISA	EGF Gene Symbol: EGF Gene ID: 1950 Accession #: P01133 ELISA Kit: RayBio Human EGF ELISA	Eotaxin-1 (CCL11) Gene Symbol: CCL11 Gene ID: 6356 Accession #: P51671 ELISA Kit: RayBio Human Eotaxin-1 ELISA	Eotaxin-2 (MPIF-2/CCL24) Gene Symbol: Ccl24 Gene ID: 6369 Accession #: O00175 ELISA Kit: RayBio Human Eotaxin-2 ELISA
Eotaxin-3 (CCL26) Gene Symbol: CCL26 Gene ID: 10344 Accession #: Q9Y258 ELISA Kit: RayBio Human Eotaxin-3 ELISA	FGF-6 Gene Symbol: FGF6 Gene ID: 2251 Accession #: P10767 ELISA Kit: RayBio Human FGF-6 ELISA	FGF-7 (KGF) Gene Symbol: FGF7 Gene ID: 2252 Accession #: P21781 ELISA Kit: RayBio Human FGF-7 ELISA	Flt-3 Ligand Gene Symbol: FLT3LG Gene ID: 2323 Accession #: P49771 ELISA Kit: RayBio Human Flt-3 L ELISA	Fractalkine (CX3CL1) Gene Symbol: CX3CL1 Gene ID: 6376 Accession #: P78423 ELISA Kit: RayBio Human Fractalkine ELISA
GCP-2 (CXCL6) Gene Symbol: CXCL6 Gene ID: 6372 Accession #: P80162 ELISA Kit: RayBio Human GCP-2 ELISA	GDNF Gene Symbol: GDNF Gene ID: 2668 Accession #: P39905 ELISA Kit: RayBio Human GDNF ELISA	GM-CSF Gene Symbol: CSF2 Gene ID: 1437 Accession #: P04141 ELISA Kit: RayBio Human GM-CSF ELISA	I-309 (TCA-3/CCL1) Gene Symbol: CCL1 Gene ID: 6346 Accession #: P22362 ELISA Kit: RayBio Human I-309 ELISA	IFN-gamma Gene Symbol: IFNG Gene ID: 3458 Accession #: P01579 ELISA Kit: RayBio Human IFN-gamma ELISA
IGFBP-1 Gene Symbol: IGFBP1 Gene ID: 3484 Accession #: P08833 ELISA Kit: RayBio Human IGFBP-1 ELISA	IGFBP-2 Gene Symbol: IGFBP2 Gene ID: 3485 Accession #: P18065 ELISA Kit: RayBio Human IGFBP-2 ELISA	IGFBP-4 Gene Symbol: IGFBP4 Gene ID: 3487 Accession #: P22692 ELISA Kit: RayBio Human IGFBP-4 ELISA	IGF-1 Gene Symbol: IGF1 Gene ID: 3479 Accession #: P05019 ELISA Kit: RayBio Human IGF-1 ELISA	IL-10 Gene Symbol: IL10 Gene ID: 3586 Accession #: P22301 ELISA Kit: RayBio Human IL-10 ELISA
IL-13 Gene Symbol: IL13 Gene ID: 3596 Accession #: P35225 ELISA Kit: RayBio Human IL-13 ELISA	IL-15 Gene Symbol: IL15 Gene ID: 3600 Accession #: P40933 ELISA Kit: RayBio Human IL-15 ELISA	IL-16 Gene Symbol: IL16 Gene ID: 3603 Accession #: Q14005 ELISA Kit: RayBio Human IL-16 ELISA	IL-1 alpha (IL-1 F1) Gene Symbol: IL1A Gene ID: 3552 Accession #: P01583 ELISA Kit: RayBio Human IL-1 alpha ELISA	IL-1 beta (IL-1 F2) Gene Symbol: IL1B Gene ID: 3553 Accession #: P01584 ELISA Kit: RayBio Human IL-1 beta ELISA
IL-1 ra (IL-1 F3) Gene Symbol: IL1RN Gene ID: 3557 Accession #: P18510 ELISA Kit: RayBio Human IL-1 RA ELISA	IL-2 Gene Symbol: IL2 Gene ID: 3558 Accession #: P60568 ELISA Kit: RayBio Human IL-2 ELISA	IL-3 Gene Symbol: IL3 Gene ID: 3562 Accession #: P08700 ELISA Kit: RayBio Human IL-3 ELISA	IL-4 Gene Symbol: IL4 Gene ID: 3565 Accession #: P05112 ELISA Kit: RayBio Human IL-4 ELISA	IL-5 Gene Symbol: IL5 Gene ID: 3567 Accession #: P05113 ELISA Kit: RayBio Human IL-5 ELISA
IL-6 Gene Symbol: IL6 Gene ID: 3569 Accession #: P05231 ELISA Kit: RayBio Human IL-6 ELISA	IL-7 Gene Symbol: IL7 Gene ID: 3574 Accession #: P13232 ELISA Kit: RayBio Human IL-7 ELISA	Leptin Gene Symbol: LEP Gene ID: 3952 Accession #: P41159 ELISA Kit: RayBio Human Leptin ELISA	Light (TNFSF14) Gene Symbol: TNFSF14 Gene ID: 8740 Accession #: O43557 ELISA Kit: RayBio Human LIGHT ELISA	MCP-1 (CCL2) Gene Symbol: CCL2 Gene ID: 6347 Accession #: P13500 ELISA Kit: RayBio Human MCP-1 ELISA
MCP-2 (CCL8) Gene Symbol: CCL8 Gene ID: 6355 Accession #: P80075 ELISA Kit: RayBio Human MCP-2 ELISA	MCP-3 (MARC/CCL7) Gene Symbol: CCL7 Gene ID: 6354 Accession #: P80098 ELISA Kit: RayBio Human MCP-3 ELISA	MCP-4 (CCL13) Gene Symbol: CCL13 Gene ID: 6357 Accession #: Q99616 ELISA Kit: RayBio Human MCP-4 ELISA	M-CSF Gene Symbol: CSF1 Gene ID: 1435 Accession #: P09603 ELISA Kit: RayBio Human M-CSF ELISA	MDC (CCL22) Gene Symbol: CCL22 Gene ID: 6367 Accession #: O00626 ELISA Kit: RayBio Human MDC ELISA
MIG (CXCL9) Gene Symbol: CXCL9 Gene ID: 4283 Accession #: Q07325 ELISA Kit: RayBio Human MIG ELISA	MIP-1 delta (CCL15) Gene Symbol: CCL15 Gene ID: 6359 Accession #: Q16663 ELISA Kit: RayBio Human MIP-1 delta ELISA	MIP-3 alpha (CCL20) Gene Symbol: CCL20 Gene ID: 6364 Accession #: P78556 ELISA Kit: RayBio Human MIP-3 alpha ELISA	NAP-2 (PPBP/CXCL7) Gene Symbol: Ppbp Gene ID: 5473 Accession #: P02775 ELISA Kit: RayBio Human NAP-2 ELISA	NT-3 Gene Symbol: NTF3 Gene ID: 4908 Accession #: P20783 ELISA Kit: RayBio Human NT-3 ELISA
PARC (CCL18) Gene Symbol: CCL18 Gene ID: 6362 Accession #: P55774 ELISA Kit: RayBio Human PARC ELISA	PDGF-BB Gene Symbol: PDGFB Gene ID: 5155 Accession #: P01127 ELISA Kit: RayBio Human PDGF-BB ELISA	RANTES (CCL5) Gene Symbol: CCL5 Gene ID: 6352 Accession #: P13501 ELISA Kit: RayBio Human RANTES ELISA	SCF Gene Symbol: KITLG Gene ID: 4254 Accession #: P21583 ELISA Kit: RayBio Human SCF ELISA	SDF-1 alpha (CXCL12 alpha) Gene Symbol: CXCL12 Gene ID: 6387 Accession #: P48061 ELISA Kit: RayBio Human SDF-1 alpha ELISA
TARC (CCL17) Gene Symbol: CCL17 Gene ID: 6361 Accession #: Q92583 ELISA Kit: RayBio Human TARC ELISA	TGF beta 1 Gene Symbol: TGFB1 Gene ID: 7040 Accession #: P01137 ELISA Kit: RayBio Human TGF-beta 1 ELISA	TGF beta 3 Gene Symbol: TGFB3 Gene ID: 7043 Accession #: P10600	TNF alpha Gene Symbol: TNF Gene ID: 7124 Accession #: P01375 ELISA Kit: RayBio Human TNF-alpha ELISA	TNF beta (TNFSF1B) Gene Symbol: LTA Gene ID: 4049 Accession #: P01374 ELISA Kit: RayBio Human TNF-beta ELISA

Species Detected

Human

Application Notes

Suggested Application

Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process

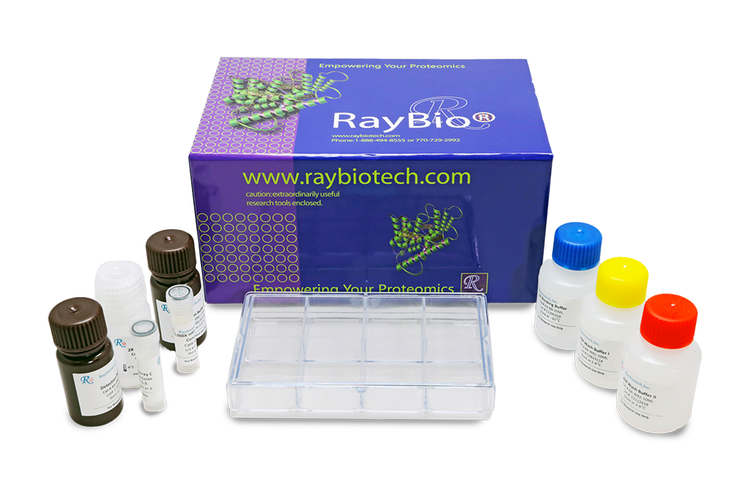

Kit Components

Human Cytokine Antibody Array C6 Membranes
Blocking Buffer
Wash Buffer 1
Wash Buffer 2
Biotinylated Detection Antibody Cocktail
Streptavidin-Conjugated HRP
Detection Buffer C
Detection Buffer D
Lysis Buffer
8-Well Incubation Tray
Plastic Sheets
Array Templates
Manual

Other Materials Required

Pipettors, pipet tips and other common lab consumables
Orbital shaker or oscillating rocker
Tissue Paper, blotting paper or chromatography paper
Adhesive tape or Saran Wrap
Distilled or de-ionized water
A chemiluminescent blot documentation system (such as UVP??s ChemiDoc-It^® or EpiChem II Benchtop Darkroom or GE's ImageQuant^™ LAS 4000 or Amersham Imagers 600 and 680), X-ray Film and a suitable film processor, or another chemiluminescent detection system.

Protocol Outline

Block membranes
Incubate with Sample
Incubate with Biotinylated Detection Antibody Cocktail
Incubate with HRP-Conjugated Streptavidin
Incubate with Detection Buffers
Image with chemiluminescent imaging system
Perform densitometry and analysis

Storage/Stability

For best results, store the entire kit frozen at -20°C upon arrival. Stored frozen, the kit will be stable for at least 6 months which is the duration of the product warranty period. Once thawed, store array membranes and 1X Blocking Buffer at -20°C and all other reagents undiluted at 4°C for no more than 3 months.

Have this product in hand?

Get your lot-specific datasheet at Ray's Docs. The datasheet linked below is our current version and may not match your lot.

Datasheet (AAH-CYT-6.pdf)

SDS (AAH-CYT-6.pdf)

Excel (AAH-CYT-6_Analysis_Tool.xls)

Product Features

Easy to use
No specialized equipment needed
Compatible with nearly any liquid sample
Proven technology (many publications)
Highly sensitive (pg/ml)
Sandwich ELISA specificity
Higher density than ELISA, Western blot or bead-based multiplex

Target Names

Scroll over each target protein for more information
Angiogenin Gene Symbol: ANG Gene ID: 283 Accession #: P03950 ELISA Kit: RayBio Human Angiogenin ELISA	BDNF Gene Symbol: BDNF Gene ID: 627 Accession #: P23560 ELISA Kit: RayBio Human BDNF ELISA	BLC (CXCL13) Gene Symbol: CXCL13 Gene ID: 10563 Accession #: O43927 ELISA Kit: RayBio Human BLC ELISA	BMP-4 Gene Symbol: BMP4 Gene ID: 652 Accession #: P12644 ELISA Kit: RayBio Human BMP-4 ELISA	BMP-6 Gene Symbol: BMP6 Gene ID: 654 Accession #: P22004 ELISA Kit: RayBio Human BMP-6 ELISA
Ck beta 8-1 (CCL23) Gene Symbol: CCL23 Gene ID: 6368 Accession #: P55773 ELISA Kit: RayBio Human Ckbeta8 ELISA	CNTF Gene Symbol: CNTF Gene ID: 1270 Accession #: P26441 ELISA Kit: RayBio Human CNTF ELISA	EGF Gene Symbol: EGF Gene ID: 1950 Accession #: P01133 ELISA Kit: RayBio Human EGF ELISA	Eotaxin-1 (CCL11) Gene Symbol: CCL11 Gene ID: 6356 Accession #: P51671 ELISA Kit: RayBio Human Eotaxin-1 ELISA	Eotaxin-2 (MPIF-2/CCL24) Gene Symbol: Ccl24 Gene ID: 6369 Accession #: O00175 ELISA Kit: RayBio Human Eotaxin-2 ELISA
Eotaxin-3 (CCL26) Gene Symbol: CCL26 Gene ID: 10344 Accession #: Q9Y258 ELISA Kit: RayBio Human Eotaxin-3 ELISA	FGF-6 Gene Symbol: FGF6 Gene ID: 2251 Accession #: P10767 ELISA Kit: RayBio Human FGF-6 ELISA	FGF-7 (KGF) Gene Symbol: FGF7 Gene ID: 2252 Accession #: P21781 ELISA Kit: RayBio Human FGF-7 ELISA	Flt-3 Ligand Gene Symbol: FLT3LG Gene ID: 2323 Accession #: P49771 ELISA Kit: RayBio Human Flt-3 L ELISA	Fractalkine (CX3CL1) Gene Symbol: CX3CL1 Gene ID: 6376 Accession #: P78423 ELISA Kit: RayBio Human Fractalkine ELISA
GCP-2 (CXCL6) Gene Symbol: CXCL6 Gene ID: 6372 Accession #: P80162 ELISA Kit: RayBio Human GCP-2 ELISA	GDNF Gene Symbol: GDNF Gene ID: 2668 Accession #: P39905 ELISA Kit: RayBio Human GDNF ELISA	GM-CSF Gene Symbol: CSF2 Gene ID: 1437 Accession #: P04141 ELISA Kit: RayBio Human GM-CSF ELISA	I-309 (TCA-3/CCL1) Gene Symbol: CCL1 Gene ID: 6346 Accession #: P22362 ELISA Kit: RayBio Human I-309 ELISA	IFN-gamma Gene Symbol: IFNG Gene ID: 3458 Accession #: P01579 ELISA Kit: RayBio Human IFN-gamma ELISA
IGFBP-1 Gene Symbol: IGFBP1 Gene ID: 3484 Accession #: P08833 ELISA Kit: RayBio Human IGFBP-1 ELISA	IGFBP-2 Gene Symbol: IGFBP2 Gene ID: 3485 Accession #: P18065 ELISA Kit: RayBio Human IGFBP-2 ELISA	IGFBP-4 Gene Symbol: IGFBP4 Gene ID: 3487 Accession #: P22692 ELISA Kit: RayBio Human IGFBP-4 ELISA	IGF-1 Gene Symbol: IGF1 Gene ID: 3479 Accession #: P05019 ELISA Kit: RayBio Human IGF-1 ELISA	IL-10 Gene Symbol: IL10 Gene ID: 3586 Accession #: P22301 ELISA Kit: RayBio Human IL-10 ELISA
IL-13 Gene Symbol: IL13 Gene ID: 3596 Accession #: P35225 ELISA Kit: RayBio Human IL-13 ELISA	IL-15 Gene Symbol: IL15 Gene ID: 3600 Accession #: P40933 ELISA Kit: RayBio Human IL-15 ELISA	IL-16 Gene Symbol: IL16 Gene ID: 3603 Accession #: Q14005 ELISA Kit: RayBio Human IL-16 ELISA	IL-1 alpha (IL-1 F1) Gene Symbol: IL1A Gene ID: 3552 Accession #: P01583 ELISA Kit: RayBio Human IL-1 alpha ELISA	IL-1 beta (IL-1 F2) Gene Symbol: IL1B Gene ID: 3553 Accession #: P01584 ELISA Kit: RayBio Human IL-1 beta ELISA
IL-1 ra (IL-1 F3) Gene Symbol: IL1RN Gene ID: 3557 Accession #: P18510 ELISA Kit: RayBio Human IL-1 RA ELISA	IL-2 Gene Symbol: IL2 Gene ID: 3558 Accession #: P60568 ELISA Kit: RayBio Human IL-2 ELISA	IL-3 Gene Symbol: IL3 Gene ID: 3562 Accession #: P08700 ELISA Kit: RayBio Human IL-3 ELISA	IL-4 Gene Symbol: IL4 Gene ID: 3565 Accession #: P05112 ELISA Kit: RayBio Human IL-4 ELISA	IL-5 Gene Symbol: IL5 Gene ID: 3567 Accession #: P05113 ELISA Kit: RayBio Human IL-5 ELISA
IL-6 Gene Symbol: IL6 Gene ID: 3569 Accession #: P05231 ELISA Kit: RayBio Human IL-6 ELISA	IL-7 Gene Symbol: IL7 Gene ID: 3574 Accession #: P13232 ELISA Kit: RayBio Human IL-7 ELISA	Leptin Gene Symbol: LEP Gene ID: 3952 Accession #: P41159 ELISA Kit: RayBio Human Leptin ELISA	Light (TNFSF14) Gene Symbol: TNFSF14 Gene ID: 8740 Accession #: O43557 ELISA Kit: RayBio Human LIGHT ELISA	MCP-1 (CCL2) Gene Symbol: CCL2 Gene ID: 6347 Accession #: P13500 ELISA Kit: RayBio Human MCP-1 ELISA
MCP-2 (CCL8) Gene Symbol: CCL8 Gene ID: 6355 Accession #: P80075 ELISA Kit: RayBio Human MCP-2 ELISA	MCP-3 (MARC/CCL7) Gene Symbol: CCL7 Gene ID: 6354 Accession #: P80098 ELISA Kit: RayBio Human MCP-3 ELISA	MCP-4 (CCL13) Gene Symbol: CCL13 Gene ID: 6357 Accession #: Q99616 ELISA Kit: RayBio Human MCP-4 ELISA	M-CSF Gene Symbol: CSF1 Gene ID: 1435 Accession #: P09603 ELISA Kit: RayBio Human M-CSF ELISA	MDC (CCL22) Gene Symbol: CCL22 Gene ID: 6367 Accession #: O00626 ELISA Kit: RayBio Human MDC ELISA
MIG (CXCL9) Gene Symbol: CXCL9 Gene ID: 4283 Accession #: Q07325 ELISA Kit: RayBio Human MIG ELISA	MIP-1 delta (CCL15) Gene Symbol: CCL15 Gene ID: 6359 Accession #: Q16663 ELISA Kit: RayBio Human MIP-1 delta ELISA	MIP-3 alpha (CCL20) Gene Symbol: CCL20 Gene ID: 6364 Accession #: P78556 ELISA Kit: RayBio Human MIP-3 alpha ELISA	NAP-2 (PPBP/CXCL7) Gene Symbol: Ppbp Gene ID: 5473 Accession #: P02775 ELISA Kit: RayBio Human NAP-2 ELISA	NT-3 Gene Symbol: NTF3 Gene ID: 4908 Accession #: P20783 ELISA Kit: RayBio Human NT-3 ELISA
PARC (CCL18) Gene Symbol: CCL18 Gene ID: 6362 Accession #: P55774 ELISA Kit: RayBio Human PARC ELISA	PDGF-BB Gene Symbol: PDGFB Gene ID: 5155 Accession #: P01127 ELISA Kit: RayBio Human PDGF-BB ELISA	RANTES (CCL5) Gene Symbol: CCL5 Gene ID: 6352 Accession #: P13501 ELISA Kit: RayBio Human RANTES ELISA	SCF Gene Symbol: KITLG Gene ID: 4254 Accession #: P21583 ELISA Kit: RayBio Human SCF ELISA	SDF-1 alpha (CXCL12 alpha) Gene Symbol: CXCL12 Gene ID: 6387 Accession #: P48061 ELISA Kit: RayBio Human SDF-1 alpha ELISA
TARC (CCL17) Gene Symbol: CCL17 Gene ID: 6361 Accession #: Q92583 ELISA Kit: RayBio Human TARC ELISA	TGF beta 1 Gene Symbol: TGFB1 Gene ID: 7040 Accession #: P01137 ELISA Kit: RayBio Human TGF-beta 1 ELISA	TGF beta 3 Gene Symbol: TGFB3 Gene ID: 7043 Accession #: P10600	TNF alpha Gene Symbol: TNF Gene ID: 7124 Accession #: P01375 ELISA Kit: RayBio Human TNF-alpha ELISA	TNF beta (TNFSF1B) Gene Symbol: LTA Gene ID: 4049 Accession #: P01374 ELISA Kit: RayBio Human TNF-beta ELISA

Species Detected

Human

Application Notes

Suggested Application

Kit Components

Human Cytokine Antibody Array C6 Membranes
Blocking Buffer
Wash Buffer 1
Wash Buffer 2
Biotinylated Detection Antibody Cocktail
Streptavidin-Conjugated HRP
Detection Buffer C
Detection Buffer D
Lysis Buffer
8-Well Incubation Tray
Plastic Sheets
Array Templates
Manual

Other Materials Required

Pipettors, pipet tips and other common lab consumables
Orbital shaker or oscillating rocker
Tissue Paper, blotting paper or chromatography paper
Adhesive tape or Saran Wrap
Distilled or de-ionized water
A chemiluminescent blot documentation system (such as UVP??s ChemiDoc-It^® or EpiChem II Benchtop Darkroom or GE's ImageQuant^™ LAS 4000 or Amersham Imagers 600 and 680), X-ray Film and a suitable film processor, or another chemiluminescent detection system.

Protocol Outline

Block membranes
Incubate with Sample
Incubate with Biotinylated Detection Antibody Cocktail
Incubate with HRP-Conjugated Streptavidin
Incubate with Detection Buffers
Image with chemiluminescent imaging system
Perform densitometry and analysis
