| Size | 2 Sample Kit, 4 Sample Kit, 8 Sample Kit |
| Estimated Lead Time | 1-2 business days |
| Species | Mouse |
| Compatible Sample Types | Tissue Lysates, Cell Lysates |
| Quantitative/Semi-Quantitative | Semi-Quantitative |
| Number of Targets Detected | 55 |
| Recommended Applications | Multiplexed Protein Detection; Detection of Relative Protein Expression; Detecting Patterns of Cytokine Expression; Biomarker/ Key Factor Screening; Identifying Key Factors; Confirming a Biological Process |
| Solid Support | Membrane |
| Design Principle | Sandwich-based |
| Method Of Detection | Chemiluminescence |
| Research Area | Post-Translational Modifications, Phosphorylation, JAK/STAT Signaling, MAPK Signaling, PI3K-AKT Signaling, TGF-beta Signaling, NFkB Signaling, Akt Signaling |
| Shipping Type | Blue ice |
| Storage | -20°C |
| Protein symbol (phosphorylated residue) | ||||
|---|---|---|---|---|
4E-BP1 (P-Thr36) | AKT (P-Ser473) | AMPKa (P-Thr172) | ATF2 (P-Thr69/71) | ATM (P-Ser1981) |
BAD (P-Ser112) | C-Fos (P-Thr232) | c-Jun (P-Ser73) | CREB (P-Ser133) | EGFR (P-Ser1070) |
eIF-2a (P-Ser51) | ERK1/2 (P-Thr202/P-Tyr204/ P-Tyr185/P-Tyr187) | GSK-3 alpha (P-Ser21) | GSK-3 beta (P-Ser9) | HDAC2 (P-Ser394) |
HDAC4 (P-Ser632) | HSP27 (P-Ser82) | IKBa (P-Ser32) | JAK1 (P-Tyr1022) | JAK2 (P-Tyr1007/1008) |
JNK (P-Thr183) | MEK (P-Ser217/221) | MKK3 (P-Ser189) | MKK6 / MEK6 (P-Ser207) | MSK1 (P-Ser376) |
MSK2 (P-Ser360) | mTOR (P-Ser2448) | NF-kB (P-Ser536) | p27 (P-Thr198) | p38 (P-Thr180/Tyr182) |
P53 (P-Ser15) | P70S6K (P-Thr421/Ser424) | PDK1 (P-Ser241) | PRAS40 (P-Thr246) | PTEN (P-Ser380) |
Raf-1 (P-Ser301) | RPS6 (P-Ser235/236) | RSK1 (P-Ser380) | RSK2 (P-Ser386) | SHP-1 (P-Ser591) |
SHP2 (P-Tyr542) | SMAD1 (P-Ser463/465) | SMAD2 (P-Ser245/250/255) | SMAD4 (P-Thr277) | SMAD5 (P-Ser463/465) |
Src (P-Tyr419) | STAT1 (P-Ser727) | STAT2 (P-Tyr689) | STAT3 (P-Tyr705) | STAT5 (P-Tyr694) |
STAT6 (P-Tyr641) | TAK1 (P-Ser412) | TBK1 (P-Ser172) | TYK2 (P-Tyr1054) | ZAP70 (P-Tyr292) |

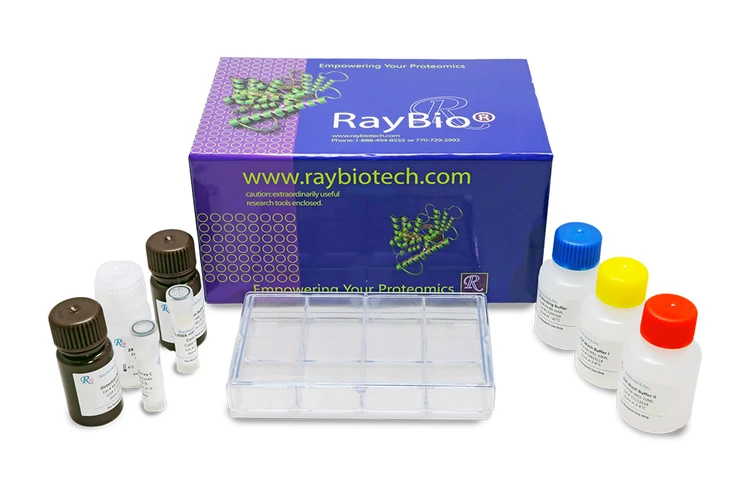

Mouse Phosphorylation Pathway Profiling Array C55
Mouse Phosphorylation Pathway Profiling Array C55
I've used this a few times now and the protocol is really streamlined to make your workflow as smooth as possible. My only stipulation is that you really have to know the sensitivity of your sample so it benefits you to try a single array rather than this entire lot the first time you run it.
Review by Spenser, from University of Chicago, on Jan 14, 2026
