Product Description

Specifications

Size	48 tests, 96 tests, 192 tests, 480 tests
Estimated Lead Time	1-2 business days
Species	Human
Compatible Sample Types	Cell Culture Supernatants, Plasma, Serum
Quantitative/Semi-Quantitative	Quantitative
Number of Targets Detected	12
Solid Support	Fluorescent Microbeads
Design Principle	Sandwich-based
Method Of Detection	Flow Cytometry
Shipping Type	Blue ice
Storage	Mixed storage. See datasheet.

Product Features

Less sample, more data: up to 25 proteins can be quantified from only 25 µl or less of your precious sample
4 hour processing time
5-10x more cost-effective than ELISA
Compatible with most flow cytometers
No specialized or dedicated instrument(s) needed
High specificity and system reproducibility
Well-suited for high throughput assays

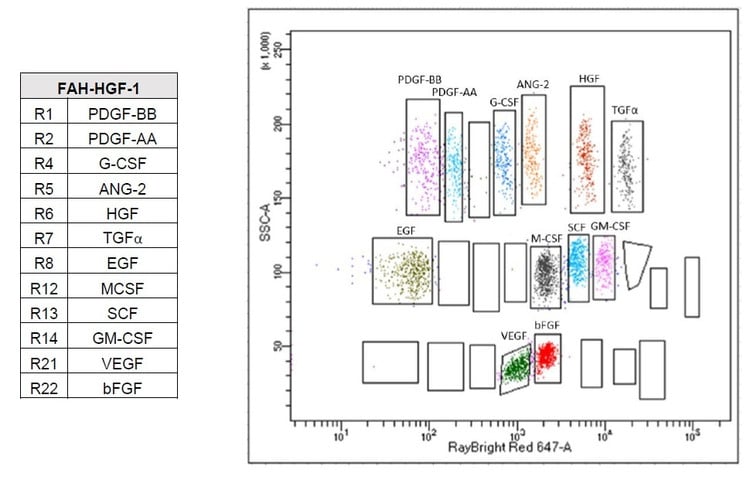

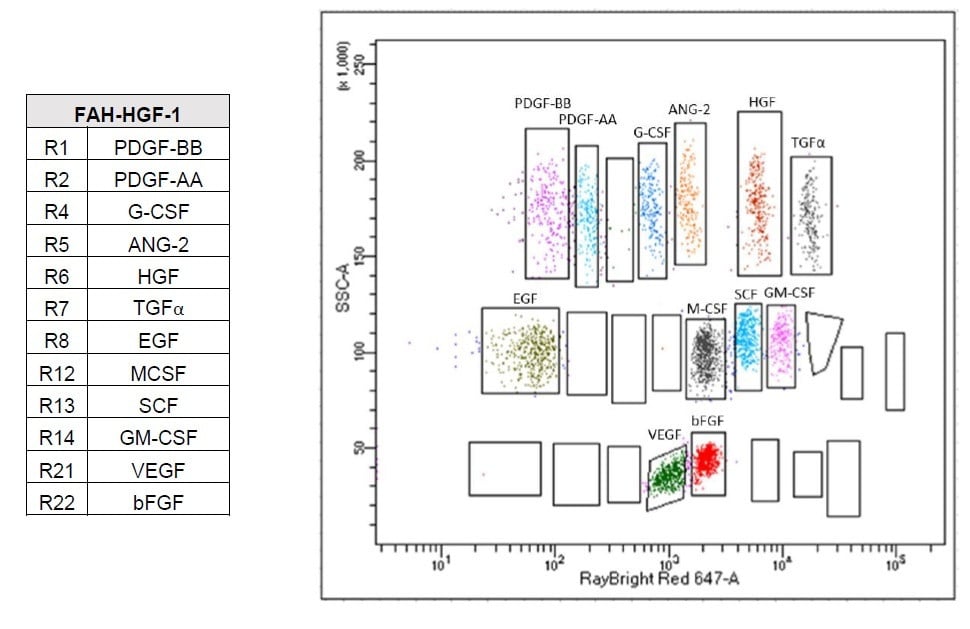

Target Names

Scroll over each target protein for more information
Angiopoietin-2 Gene Symbol: ANGPT2 Gene ID: 285 Accession #: O15123 ELISA Kit: RayBio Human ANGPT2 ELISA	bFGF Gene Symbol: FGF2 FGFB Gene ID: 2247 Accession #: P09038 ELISA Kit: RayBio Human bFGF ELISA	EGF Gene Symbol: EGF Gene ID: 1950 Accession #: P01133 ELISA Kit: RayBio Human EGF ELISA	GCSF Gene Symbol: CSF3 C17orf33 GCSF Gene ID: 1440 Accession #: P09919 ELISA Kit: RayBio Human G-CSF ELISA	GM-CSF Gene Symbol: CSF2 GMCSF Gene ID: 1437 Accession #: P04141 ELISA Kit: RayBio Human GM-CSF ELISA
HGF Gene Symbol: HGF HPTA Gene ID: 3082 Accession #: P14210 ELISA Kit: RayBio Human HGF ELISA	M-CSF Gene Symbol: CSF1 Gene ID: 1435 Accession #: P09603 ELISA Kit: RayBio Human M-CSF ELISA	PDGF-AA Gene Symbol: PDGFA PDGF1 Gene ID: 5154 Accession #: P04085 ELISA Kit: RayBio Human PDGF-AA ELISA	PDGF-BB Gene Symbol: PDGFB PDGF2 SIS Gene ID: 5155 Accession #: P01127 ELISA Kit: RayBio Human PDGF-BB ELISA	SCF Gene Symbol: KITLG MGF SCF Gene ID: 4254 Accession #: P21583 ELISA Kit: RayBio Human SCF ELISA
TGF alpha Gene Symbol: TGFA Gene ID: 7039 Accession #: P01135 ELISA Kit: RayBio Human TGF-alpha ELISA	VEGF-A Gene Symbol: VEGFA VEGF Gene ID: 7422 Accession #: P15692 ELISA Kit: RayBio Human VEGF-A ELISA

Application Notes

Suggested Application

Multiplexed Protein Detection; Biomarker Screening; Identifying Key Factors; Confirming Biological Process; Biomarker Validation; Validation of Antibody Array Results; Quantitative Protein Detection; Establishing Normal Range

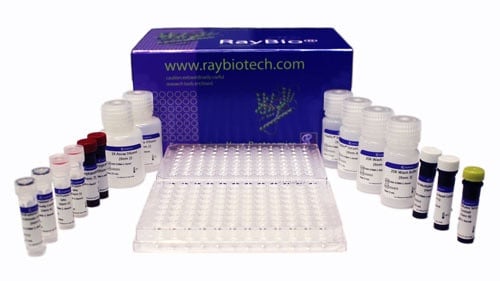

Kit Components

RayPlex Multiplex Bead Cocktail
1X Assay Diluent
20X Wash Buffer
RayBio^® Serum/Plasma Diluent
Lyophilized Protein Standard Mix
1X Biotinylated Detection Antibody Cocktail
10X PE Conjugate
Flow Cytometer Setup Bead Cocktail
V-bottom 96-well Microplate
Filter 96-well Microplate

Other Materials Required

Orbital 96-well plate shaker (with ability to reach 1000 rpm)
Flow cytometer with blue and red lasers capable of measuring phycoerythrin (PE) and allophycocyanin (APC) channels
Aluminum foil or 96-well Plate Aluminum Sealers
Distilled water
1.5 ml polypropylene microcentrifuge tubes or similar
Microcentrifuge
If using the Filter 96-Well Microplate (Item 11): Vacuum manifold compatible with a 96-well microplate
Optional: 96-well round bottom plate (to prepare samples)
Optional: High throughput sampler (HTS) for 96-well plate reading

Don't have a compatible flow cytometer? RayBiotech provides full testing services for RayPlex bead arrays. Get a quote!

Protocol Outline

Prepare Reagents, Standards, and Samples
Add RayPlex Multiplex Bead Cocktail to each well
Incubate with Samples and Standards
Incubate with Biotinylated Detection Antibody Cocktail
Incubate with Streptavidin-Conjugated Fluorophore
Analyze with a compatible flow cytometer
Perform data analysis

Storage/Stability

Upon receipt, all components should be stored at 4°C. The Lyophilized Protein Standard Mix (Item 4) should be stored at 4°C or below. Use reagents immediately after preparation. If stored at the proper temperature, the kit will retain complete activity for at least 6 months.

Product Features

Less sample, more data: up to 25 proteins can be quantified from only 25 µl or less of your precious sample
4 hour processing time
5-10x more cost-effective than ELISA
Compatible with most flow cytometers
No specialized or dedicated instrument(s) needed
High specificity and system reproducibility
Well-suited for high throughput assays

Target Names

Scroll over each target protein for more information
Angiopoietin-2 Gene Symbol: ANGPT2 Gene ID: 285 Accession #: O15123 ELISA Kit: RayBio Human ANGPT2 ELISA	bFGF Gene Symbol: FGF2 FGFB Gene ID: 2247 Accession #: P09038 ELISA Kit: RayBio Human bFGF ELISA	EGF Gene Symbol: EGF Gene ID: 1950 Accession #: P01133 ELISA Kit: RayBio Human EGF ELISA	GCSF Gene Symbol: CSF3 C17orf33 GCSF Gene ID: 1440 Accession #: P09919 ELISA Kit: RayBio Human G-CSF ELISA	GM-CSF Gene Symbol: CSF2 GMCSF Gene ID: 1437 Accession #: P04141 ELISA Kit: RayBio Human GM-CSF ELISA
HGF Gene Symbol: HGF HPTA Gene ID: 3082 Accession #: P14210 ELISA Kit: RayBio Human HGF ELISA	M-CSF Gene Symbol: CSF1 Gene ID: 1435 Accession #: P09603 ELISA Kit: RayBio Human M-CSF ELISA	PDGF-AA Gene Symbol: PDGFA PDGF1 Gene ID: 5154 Accession #: P04085 ELISA Kit: RayBio Human PDGF-AA ELISA	PDGF-BB Gene Symbol: PDGFB PDGF2 SIS Gene ID: 5155 Accession #: P01127 ELISA Kit: RayBio Human PDGF-BB ELISA	SCF Gene Symbol: KITLG MGF SCF Gene ID: 4254 Accession #: P21583 ELISA Kit: RayBio Human SCF ELISA
TGF alpha Gene Symbol: TGFA Gene ID: 7039 Accession #: P01135 ELISA Kit: RayBio Human TGF-alpha ELISA	VEGF-A Gene Symbol: VEGFA VEGF Gene ID: 7422 Accession #: P15692 ELISA Kit: RayBio Human VEGF-A ELISA

Application Notes

Suggested Application

Kit Components

RayPlex Multiplex Bead Cocktail
1X Assay Diluent
20X Wash Buffer
RayBio^® Serum/Plasma Diluent
Lyophilized Protein Standard Mix
1X Biotinylated Detection Antibody Cocktail
10X PE Conjugate
Flow Cytometer Setup Bead Cocktail
V-bottom 96-well Microplate
Filter 96-well Microplate

Other Materials Required

Orbital 96-well plate shaker (with ability to reach 1000 rpm)
Flow cytometer with blue and red lasers capable of measuring phycoerythrin (PE) and allophycocyanin (APC) channels
Aluminum foil or 96-well Plate Aluminum Sealers
Distilled water
1.5 ml polypropylene microcentrifuge tubes or similar
Microcentrifuge
If using the Filter 96-Well Microplate (Item 11): Vacuum manifold compatible with a 96-well microplate
Optional: 96-well round bottom plate (to prepare samples)
Optional: High throughput sampler (HTS) for 96-well plate reading

Don't have a compatible flow cytometer? RayBiotech provides full testing services for RayPlex bead arrays. Get a quote!

Protocol Outline

Prepare Reagents, Standards, and Samples
Add RayPlex Multiplex Bead Cocktail to each well
Incubate with Samples and Standards
Incubate with Biotinylated Detection Antibody Cocktail
Incubate with Streptavidin-Conjugated Fluorophore
Analyze with a compatible flow cytometer
Perform data analysis
